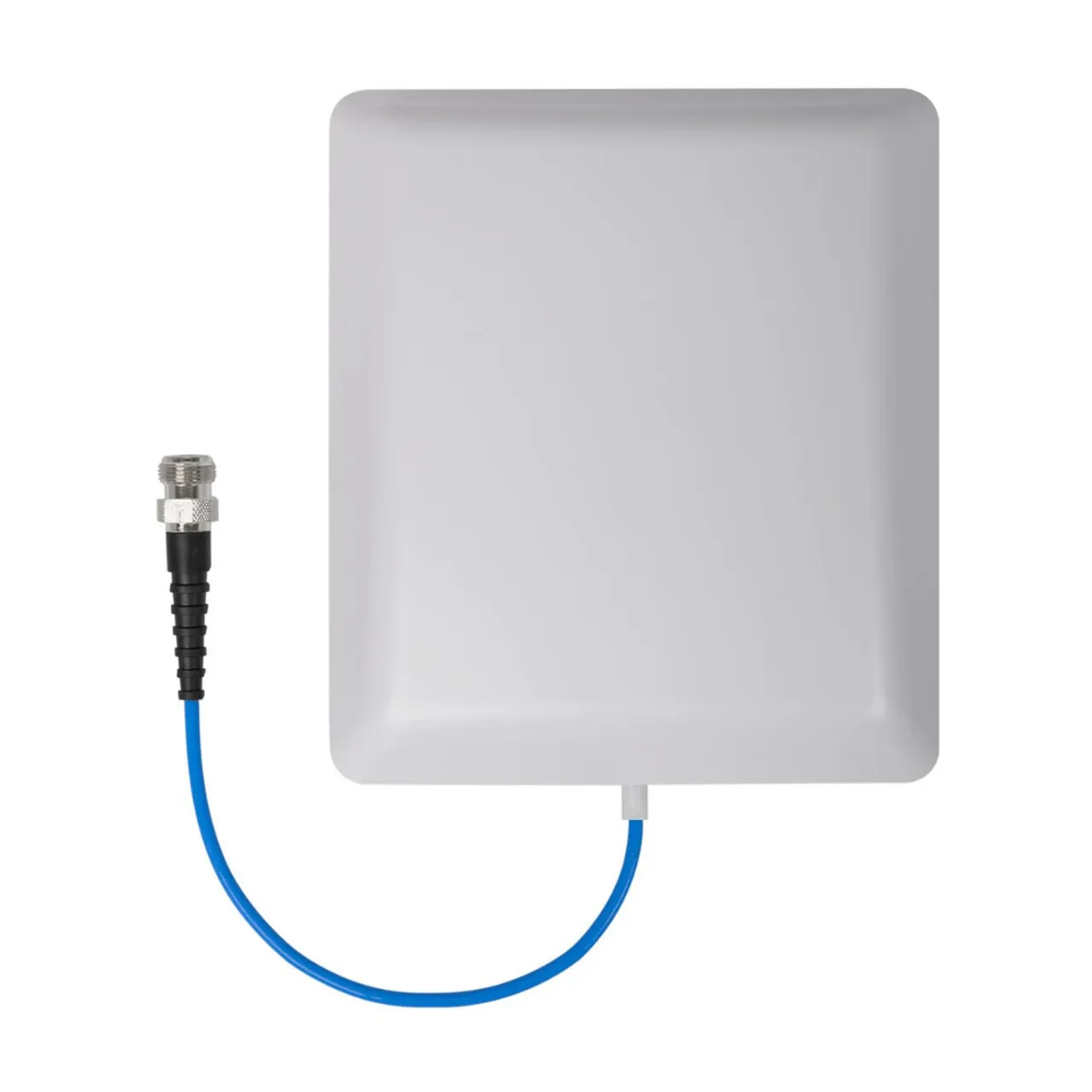

The Powertec 4G-5G Indoor Wall Mount Panel Antenna, 698 to 4000 MHz, N Female is engineered to enhance mobile connectivity inside buildings. Supporting frequencies from 698 to 4000 MHz, this antenna is suitable for both 4G LTE and 5G NR networks, making it an ideal choice for boosting signal strength across various indoor environments.

Key Features:

  • Provides a 5 dBi gain for 698 to 960 MHz
  • Provides a 7 dBi gain for 1710 to 4000 MHz
  • Linear and Vertical Polarisation
  • 50 Ω Input Impedance
  • 50W max. Input Power
  • DC Ground Lightning Protection
  • N Female Connector options

High-Gain Performance

This panel antenna delivers impressive gain with values ranging from 5.5 dBi at lower frequencies (698-806 MHz) to 8 dBi at higher frequencies (1695-2700 MHz). With its semi-directional coverage, it provides broad signal propagation, ensuring a wide and effective coverage area.

Advanced Electrical Specifications

The antenna features a low VSWR of ≤1.8 across most frequency bands, which contributes to superior signal quality and minimal interference. It has a maximum input power of 50 W and boasts a low Passive Intermodulation (PIM) of < -150 dBc, ensuring reliable performance in multi-carrier environments.

Durable Construction

Built with a UV-stabilised ABS radome and an aluminium reflector, the Powertec Indoor Wall Mount Panel Antenna is designed to withstand various indoor conditions. It operates efficiently in a temperature range of -40 °C to +65 °C, ensuring long-term reliability.

Semi-Directional Design

This antenna offers a semi-directional radiation pattern with horizontal beam widths between 60° and 92° and vertical beam widths from 28° to 73°. This design ensures that signal coverage is both broad and effective, tailored to meet diverse installation needs.

Compact and Lightweight

With dimensions of 180 × 158 × 60 mm and a weight of just 0.4 kg, this antenna is easy to install and mount. It includes a wall bracket for straightforward installation, making it a practical solution for commercial indoor coverage.

Flexible Connectivity Options

The Powertec 4G-5G Indoor Wall Mount Panel Antenna comes with an N Female connector, offering reliable and secure connections. It also includes a semi-flexible RG-402 cable tail, enhancing installation flexibility and ease of setup.

Category Specification Details
Model Number ANT-BH-WAL Powertec 4G-5G Indoor Wall Mount Panel Antenna
Frequency Range 698 to 806 MHz
806 to 960 MHz
1695 to 2700 MH
3300 to 4000 MHz		 Wideband coverage for 4G and 5G
Gain 5.5 dBi (698-806 MHz) Low frequency band
  6.5 dBi (806-960 MHz) Mid-frequency band
  8 dBi (1695-2700 MHz) Higher frequency band
  7 dBi (3300-4000 MHz) High frequency band
VSWR ≤ 2.0:1 (698-960 MHz) Efficient signal transmission for low and mid-frequencies
  ≤ 1.7:1 (1695-4000 MHz) Efficient signal transmission for higher frequencies
Polarisation Linear, Vertical Standard vertical orientation
PIM, 3rd Order ≤ -150 dBc Low intermodulation interference
Horizontal Beamwidth 92° (698-806 MHz) Wide horizontal coverage for low frequencies
  90° (806-960 MHz) Moderate horizontal coverage for mid-frequencies
  65° (1695-2700 MHz) Narrower horizontal coverage for higher frequencies
  55° (3300-4000 MHz) Narrow horizontal coverage for high frequencies
Vertical Beamwidth 73° (698-806 MHz) Wide vertical coverage for low frequencies
  68° (806-960 MHz) Moderate vertical coverage for mid-frequencies
  60° (1695-2700 MHz) Narrower vertical coverage for higher frequencies
  35° (3300-4000 MHz) Narrow vertical coverage for high frequencies
Input Impedance 50 Ω Standard impedance for antennas
Max Input Power 50 W High power handling capacity
Connector N Female Standard connector option
Dimensions 180 × 158 × 60 mm Length x Width x Height
Weight 0.4 kg -
Radome Material ABS (UV Stabilised) Durable and weather-resistant
Operating Temperature -40 °C to +65 °C Suitable for a wide range of temperatures
Cable Series RG-402 High-performance cable
Cable Length 300 mm -
SKU ANT-BH-WAL
Barcode # 90003825
Brand Powertec Wireless Technology
