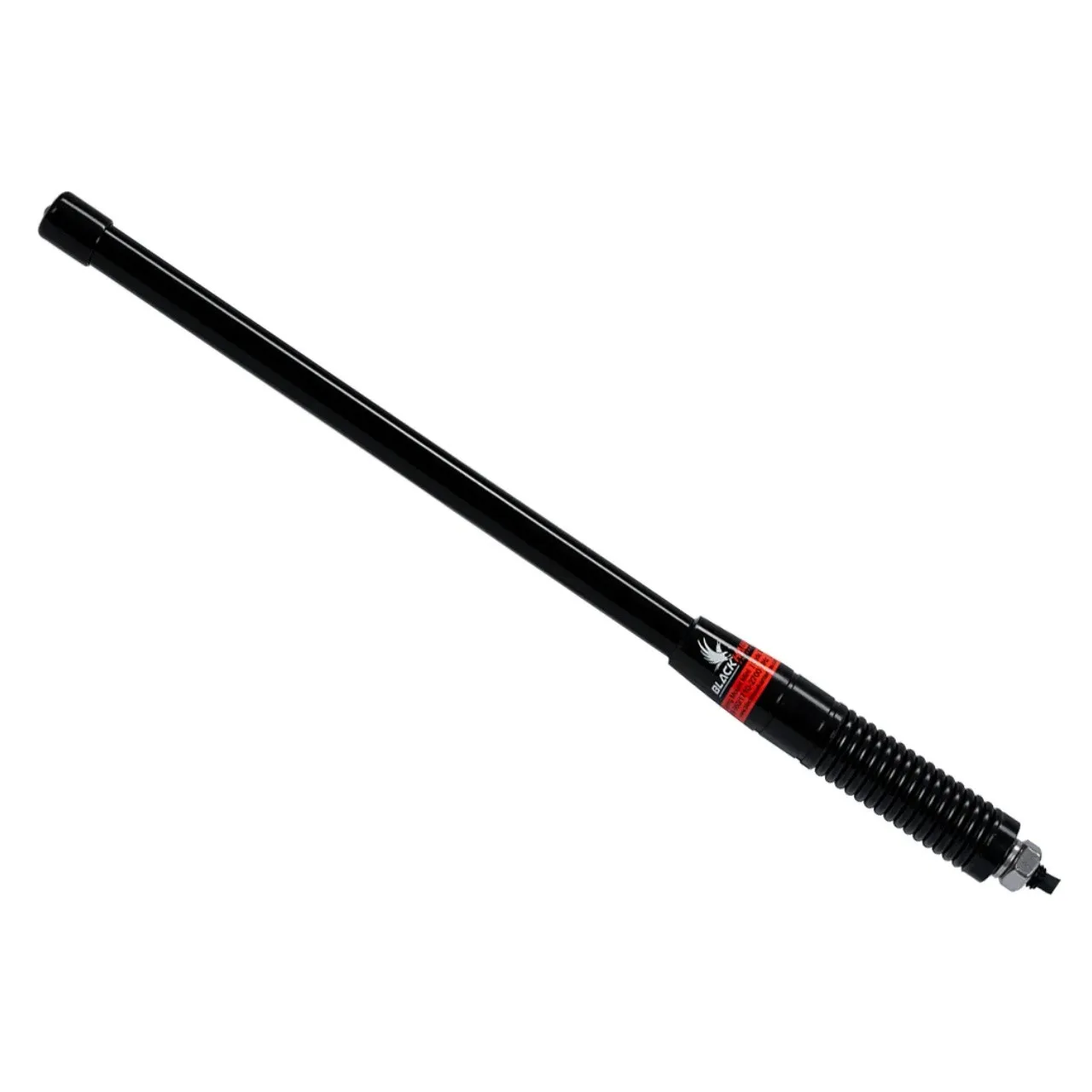

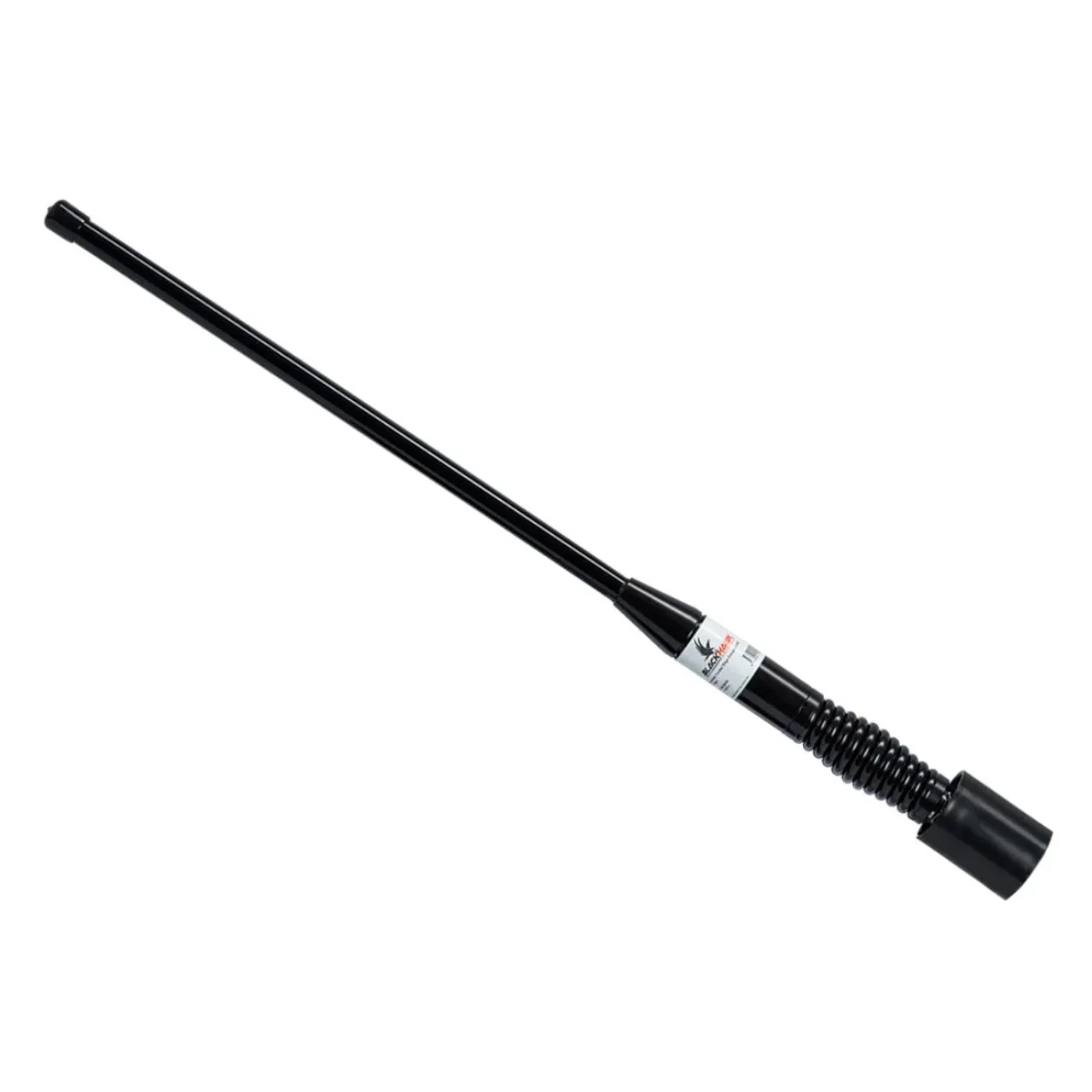

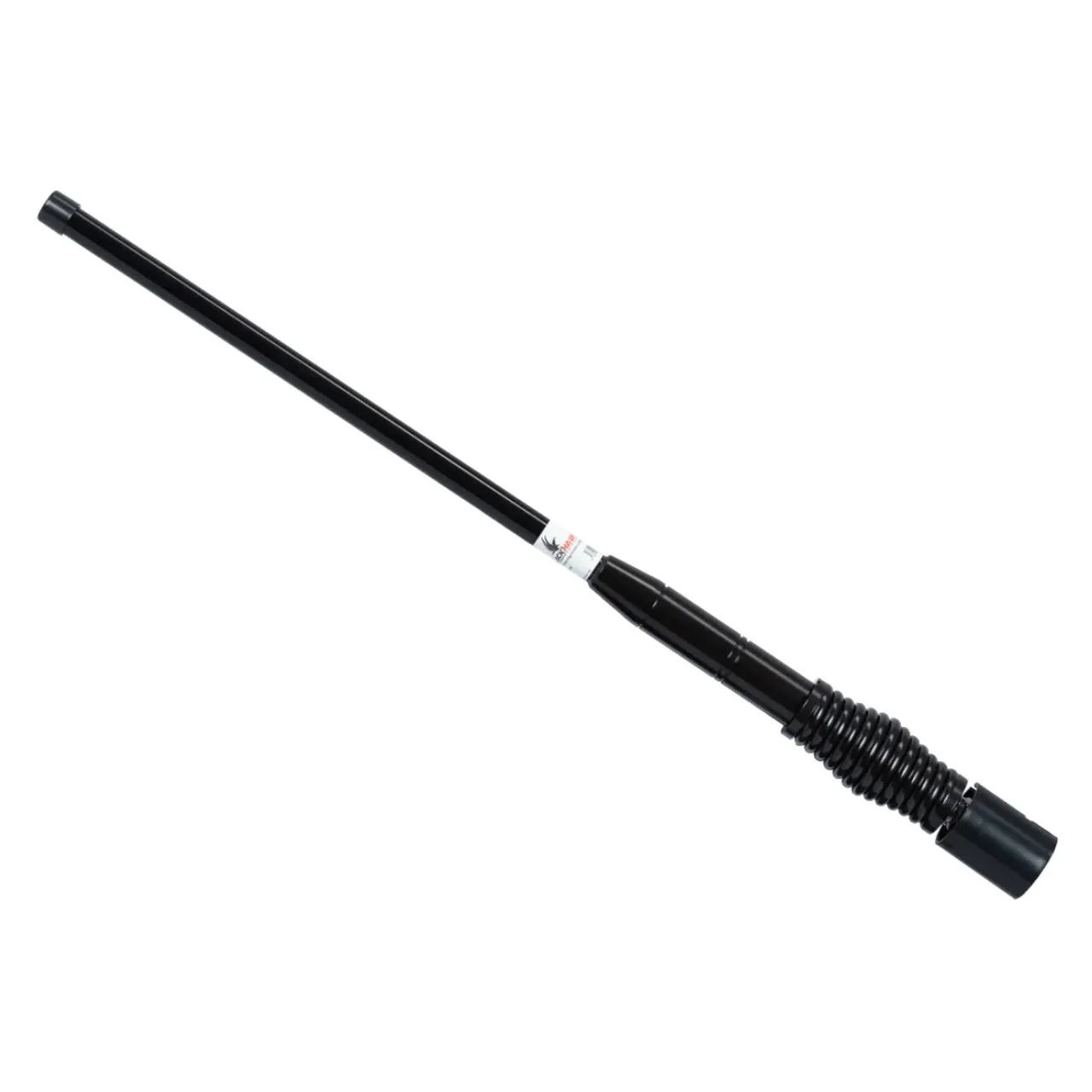

The Blackhawk 4G Trucker Edge Compact LITE Antenna, 700 to 2200 MHz, SMA Male is designed to meet the demands of both 3G and 4G networks across Australia. With a frequency range of 698 to 2200 MHz, this antenna ensures reliable voice and data communication, making it ideal for commercial and industrial applications where dependable connectivity is crucial.

Key Features:

• 698-960 MHz and 1710-2170 MHz Frequency Range
• 4 dBi to 5 dBi Gain
• ≤2.0 VSWR
• Vertical polarisation.
• 360° Horizontal Beamwidth
• 48° Vertical Beamwidth
• 50 Ohms Input Impedance
• 50W max. Power Handling
• Copper Reflector
• Fibreglass Radome
• 60cm in height

Optimised Design for Durability

Featuring a sleek 60 cm design, the Trucker Edge Compact LITE is lighter than its counterpart, weighing only 1.2 kg. Its streamlined barrel design not only reduces weight but also minimises vibrations, making it suitable for use on corrugated roads and in harsh environments. This design improvement enhances durability and reduces potential damage during transit.

Advanced Signal Gain

The antenna provides a gain of 4 dBi in the lower frequency range (698-960 MHz) and 5 dBi in the higher range (1710-2200 MHz). This gain enhances signal strength, ensuring better coverage and connectivity for your 4G network needs.

Versatile Mounting Options

Equipped with an SMA-Male connector and a 4.5-meter coax cable, the Blackhawk Trucker Edge Compact LITE offers flexible installation options. It can be mounted on a car bonnet or bull bar, making it adaptable to various vehicle types and ensuring optimal signal reception.

Crafted for Extreme Conditions

Built to withstand extreme conditions, this antenna features a rugged construction that is capable of handling temperatures from -40 °C to +65 °C. The durable copper reflector and fibreglass radome ensure the antenna performs reliably in harsh environments.

Comprehensive Coverage

With a vertical beam width of 48° and a horizontal beam width of 360°, the Trucker Edge Compact LITE provides broad and even signal coverage. This wide beam width ensures consistent performance, regardless of the direction of the signal source.

Enhanced Safety Features

The antenna is designed with built-in lightning protection and operates at a maximum power of 50 watts. This feature ensures that your equipment remains safe from electrical surges and extends the longevity of your antenna in demanding conditions.
