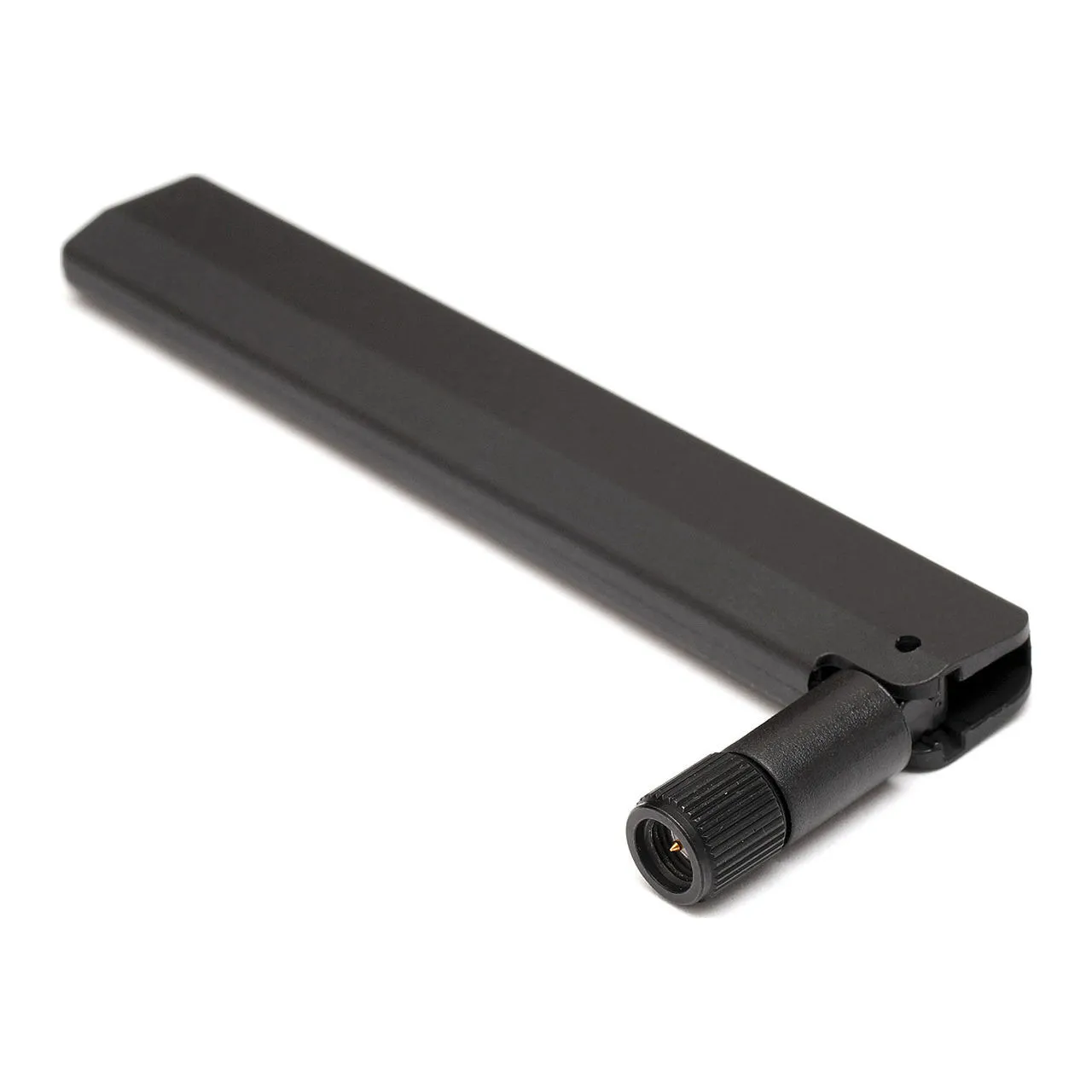

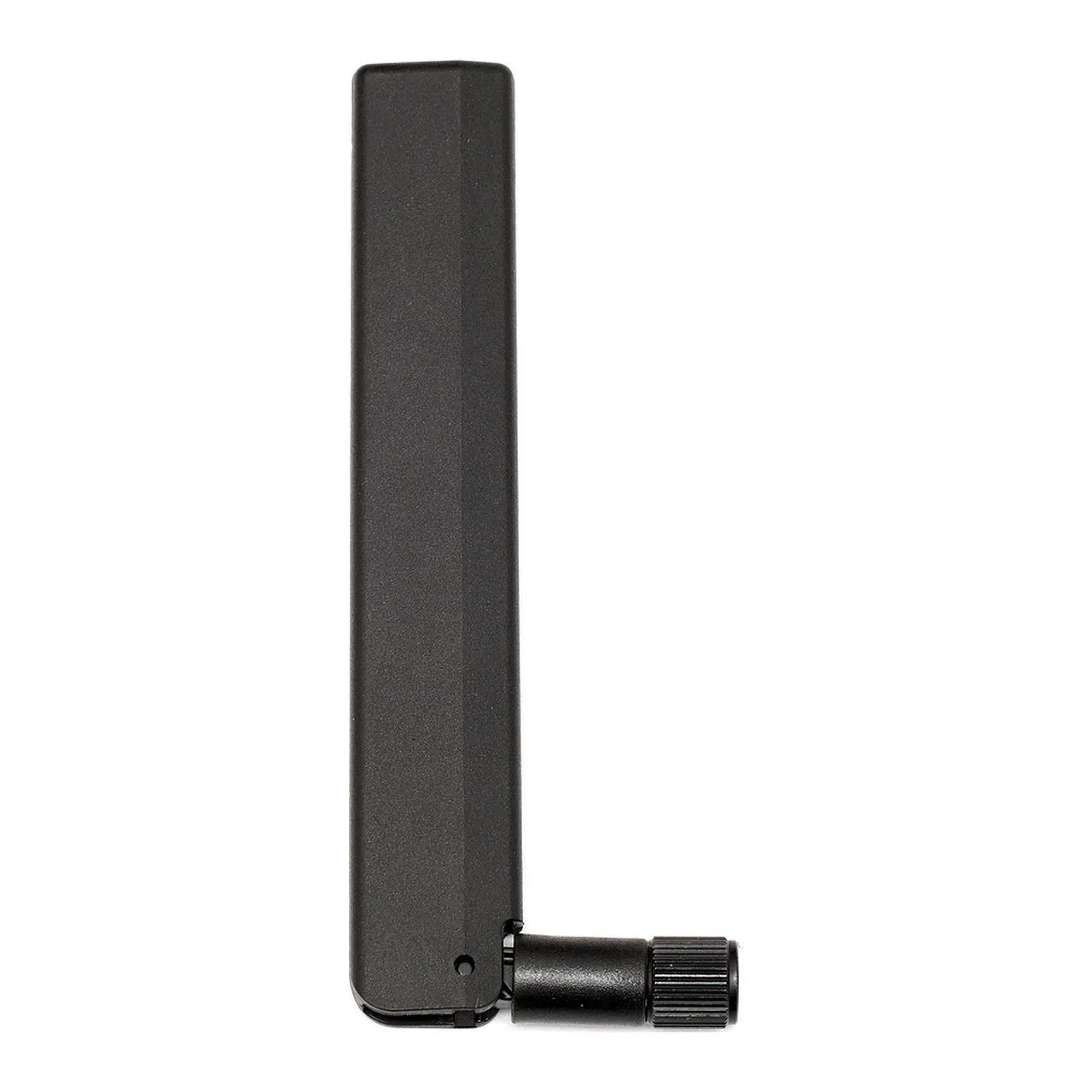

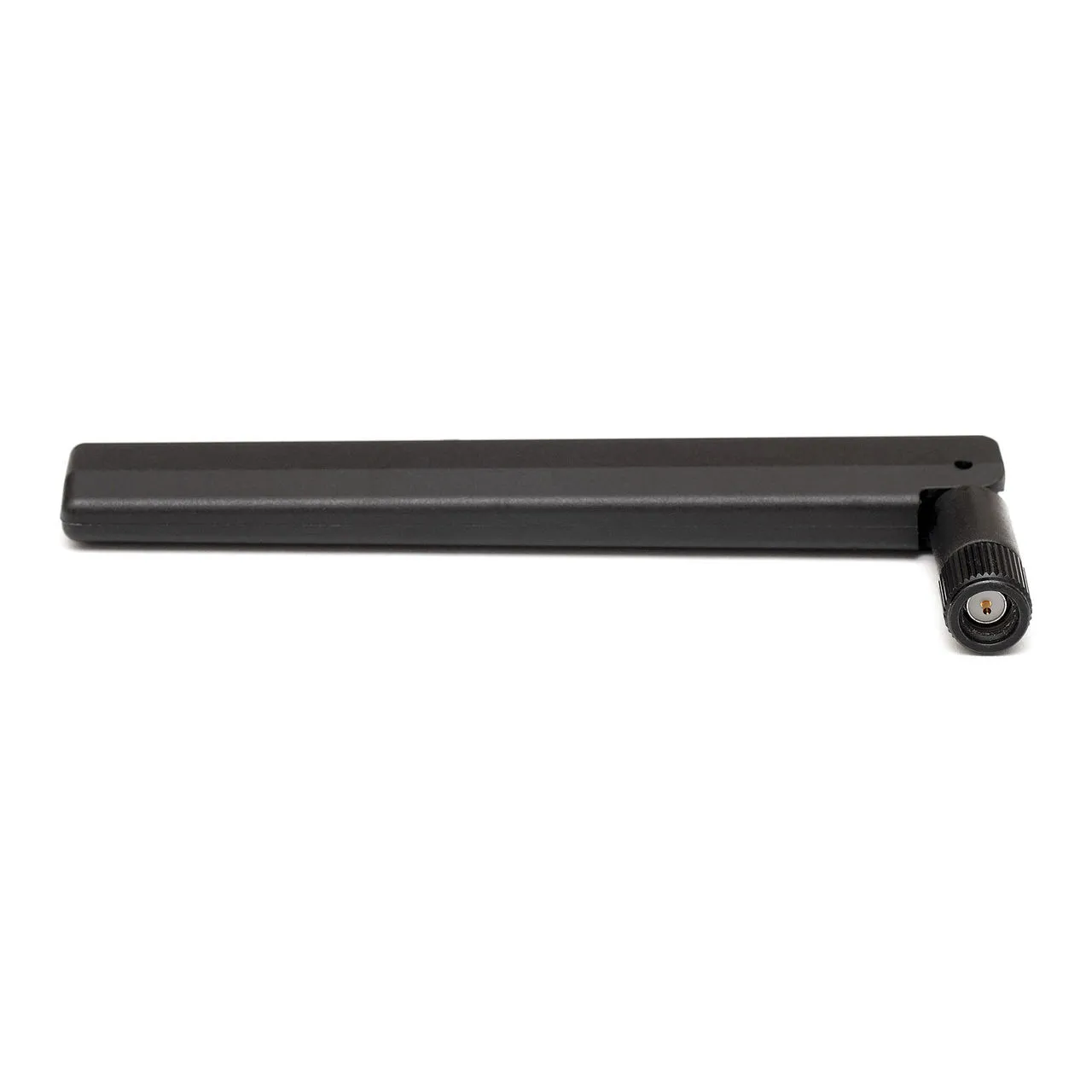

This versatile antenna combines high performance with full bandwidth coverage for 5G NR, 4G LTE, and 3G/2G/CDMA cellular spectrums and the smallest antenna design on the market. The innovative hinged swivel design allows the antenna to be positioned in a straight, right, or 45-degree angle so it can be rotated into the direction with the most signal strength and reduce interference with other antennas nearby.

Features:

• Dipole antenna
• Ground plane independent
• Ultra-Wideband antenna: 619-5925MHz
• Sub 6GHz Bands
• Full 4GLTE backward compatibility
• 1.6 dBi 5G NR peak gain
• High performance
• Hinged Connector

Suggested Applications:

• Terminals, Base Stations and Routers
• High Traffic MIMO Device Connectivity
• Industrial, Commercial and Residential IoT
• Industrial, Commercial and Residential Smart Home / Office
• ATM Machines
• IoT Dispensers
• Vending Machines
• Electrical Metering

The antenna housing is manufactured from a PC/ABS UV protective material, allowing it to withstand extreme temperatures ranging between -40C to +85C and making it ideal for outdoor applications. The design dimensions are 135 x 19 x 10 mm (straight angle), 110 x 42 x 10 mm (right angle) and 88 x 112 x 10 mm (45-degree angle). This antenna is ground plane independent allowing for a wide range of installation options with minimal restrictions.
