The Ruijie Reyee RG-RAP6260(G) is a high-performance outdoor access point that leverages Wi-Fi 6 technology to deliver speeds of up to 1775Mbps. This dual-band AP supports concurrent 2.4GHz and 5GHz frequencies, ensuring seamless connectivity in demanding outdoor environments.

Key Features:

  • Wi-Fi 6 technology
  • Total throughput of up to 1775Mbps
  • IP68-rated
  • Dual-band, dual-stream MIMO technology
  • Long-range omnidirectional coverage with internal antennas
  • 1x 10/100/1000 Base-T PoE port
  • 1x 100/1000 Base-X SFP port
  • Supports up to 512 clients
  • ≤17W power consumption

Designed for Harsh Conditions

With IP68-rated protection, the RG-RAP6260(G) is built to withstand extreme weather conditions, including rain, dust, and even ultra-cold or humid environments. Its durable design reduces the need for frequent maintenance, making it ideal for long-term outdoor installations.

Efficient Dual-Stream MIMO Technology

Equipped with 2x2 MU-MIMO for both the 2.4GHz and 5GHz bands, this access point optimises data transmission, allowing multiple devices to connect simultaneously without compromising speed. This makes it suitable for public venues, education, or outdoor events.

Expandable Mesh Networking

Easily expand your outdoor network with Reyee Mesh technology. The RG-RAP6260(G) allows for quick installation of additional access points with minimal wiring, providing comprehensive coverage in large outdoor spaces without complex configurations.

Long-Range, Omni-Directional Antennas

The internal 4dBi and 6dBi antennas offer omnidirectional coverage, extending the Wi-Fi signal across wide areas. This ensures reliable, long-range connectivity, making it perfect for parks, campuses, and other outdoor facilities.

Flexible Power and Installation Options

Supporting 802.3at PoE, the RG-RAP6260(G) simplifies power supply needs with just one cable for both power and data. The access point is easy to install on walls or poles, offering flexibility in various outdoor deployment scenarios.

Seamless Management with Ruijie Cloud APP

The Ruijie Cloud APP allows for quick setup and remote management of the RG-RAP6260(G), making it simple to monitor and configure the network from any location. This powerful tool enhances the user experience with automatic updates and unified management.

Category Specification Details
Model Version RG-RAP6260(G) AX1800 WiFi 6 Outdoor Access Point
Wireless Protocol 802.11a/b/g/n/ac/ax Dual-band Wi-Fi 6 with concurrent 2.4GHz (574Mbps) and 5GHz (1201Mbps)
Operating Bands 2.4G ~ 2.4835GHz
5G ~ 5.850GHz		 Country-specific 5G bands
Antenna Internal antennas 2.4GHz: 4dBi
5GHz: 6dBi
Spatial Streams 2x2 MU-MIMO (2.4GHz & 5GHz) Supports multi-user MIMO
Max Throughput 1775Mbps 574Mbps at 2.4GHz
1201Mbps at 5GHz
Max/Recommended Clients 512/100 Supports up to 512 clients, 100 recommended
Dimensions 298 mm × 298 mm × 65 mm Excluding mounting kits
Weight ≤1.35 kg Excluding mounting kits
Service Ports 1 x 10/100/1000 Base-T
1 x 100/1000 Base-X SFP		 Supports PoE IN, Gigabit SFP port for fibre uplink
Power Supply 802.3at PoE Supports PoE (PSU sold separately)
Power Consumption ≤17W
Environmental Protection IP68 Water and dustproof
Operating Temperature -40 °C ~ 65 °C

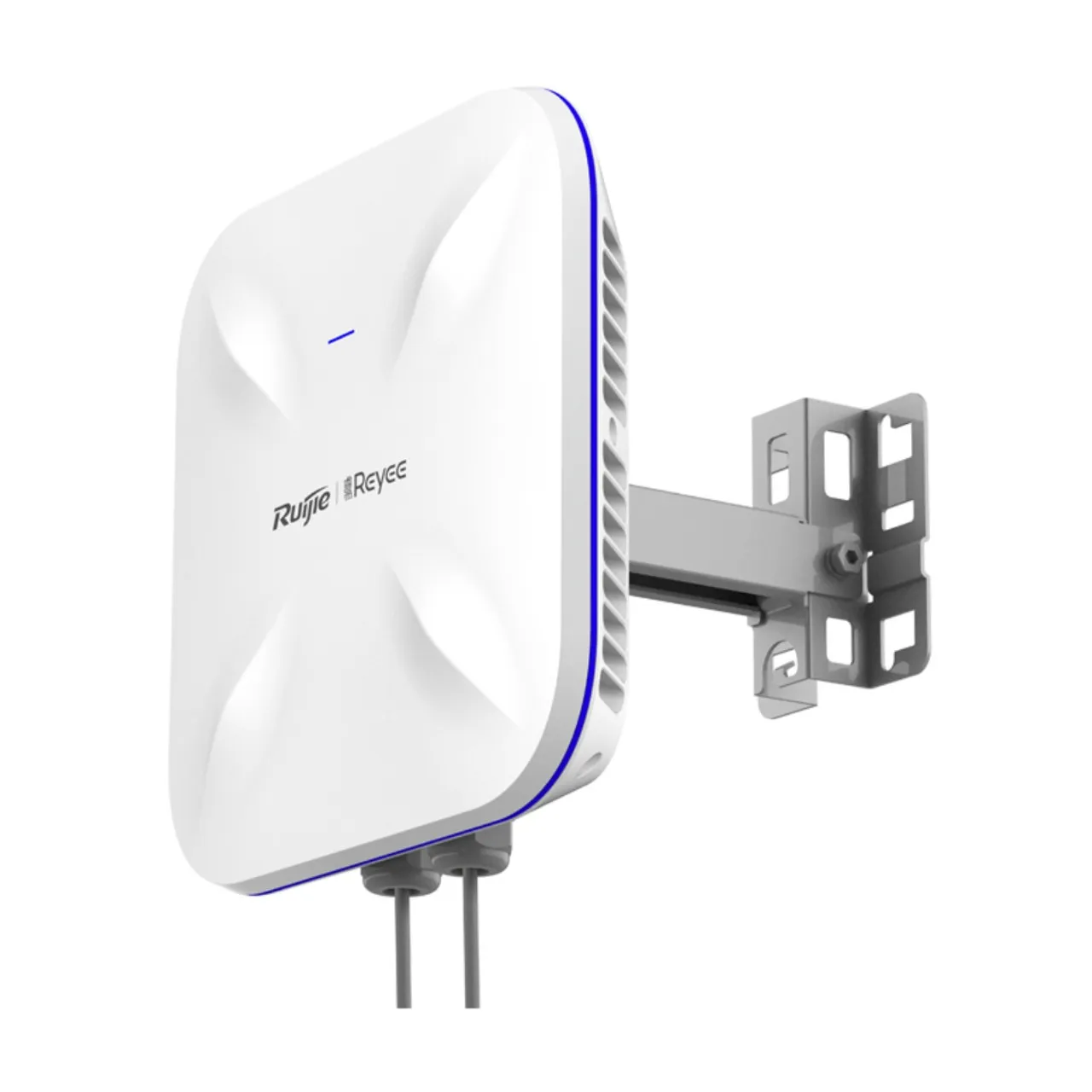

Installation Pole/Wall-Mountable
Bluetooth Supported
Certifications Types CE
ROHS
SKU WIF-RY-00057
Barcode # 6971693272187
Brand Ruijie Reyee
