The Cudy AP3000 AX3000 WiFi 6 2.5G Access Point is engineered to enhance your network connectivity, delivering superior performance and extended coverage throughout your home or office. With its cutting-edge design and advanced features, this access point is perfect for boosting your network speed and ensuring a reliable connection in every corner of your space.

Boasting dual-band speeds of up to 3000 Mbps, the AP3000 supports a range of online activities, including streaming, gaming, and browsing, with exceptional speed and stability. Its high-capacity design efficiently manages multiple devices, ensuring smooth and uninterrupted internet experiences.

Setting up the AP3000 is simple and flexible. The device supports Power over Ethernet (PoE) for easy installation in optimal locations without needing additional power outlets. With just a few straightforward steps, you can expand your network’s coverage and performance.

The AP3000’s advanced security features safeguard your network from unauthorised access, while its intuitive web interface and mobile app make management effortless. Enjoy seamless connectivity and enhanced performance with the Cudy AP3000 AX3000 WiFi 6 2.5G Access Point.

Key Features:

  • 1.3 GHz Dual-Core CPU
  • 512 MB RAM
  • 4-Stream Dual-Band Wi-Fi 6
  • 2402 Mbps + 574 Mbps Wi-Fi
  • 1× Shielded 2.5Gbps Ethernet Port
  • 802.3at, Passive PoE, DC
  • Watchdog, Schedule Reboot
  • 300 Connected Devices
  • Covers 130 m²
  • Cudy Mesh

Enhanced Dual-Band Speeds

The Cudy AP3000 AX3000 WiFi 6 2.5G Access Point delivers exceptional performance with dual-band speeds of up to 3000 Mbps, split between 2402 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band. This high-speed connectivity ensures seamless streaming, gaming, and browsing across all your devices.

Advanced Wireless Technology

Featuring the latest Wi-Fi 6 (802.11ax) technology, the AP3000 provides superior wireless performance with OFDMA, MU-MIMO, and Beamforming. These features enhance signal strength, reduce interference, and support multiple devices simultaneously for a smooth and efficient network experience.

Extended Coverage and High Capacity

With its powerful high-gain antennas, the AP3000 extends your Wi-Fi coverage, eliminating dead zones and providing strong, reliable signal strength throughout your home or office. It supports up to 100 connected devices, making it ideal for both residential and commercial environments.

Flexible Installation Options

The AP3000 offers flexible installation with Power over Ethernet (PoE) support, allowing you to place the access point in optimal locations without needing additional power outlets. This feature simplifies setup and provides versatility in network deployment.

Comprehensive Security Features

Security is a top priority with the AP3000. It includes advanced WPA3 encryption, ensuring your network is protected against unauthorised access and cyber threats. The access point also supports guest network features, allowing you to securely manage and separate network traffic.

User-Friendly Management Tools

Configuring and managing the AP3000 is straightforward with its intuitive web interface and mobile app support. Easily adjust settings, monitor network performance, and control connected devices from anywhere, ensuring a hassle-free network management experience.

Category Specification Details
Model Version AP3000 1.0 AX3000 WiFi 6 2.5G Access Point
CPU Chipset MT7981BA
  CPU Details 1.3 GHz Dual-Core CPU
Memory/Storage Flash/ROM 256 MB (2 Gbit) NAND
  DDR/RAM 512 MB (4 Gbit) DDR4
Wireless 5 GHz Wi-Fi Speed 2402 Mbps
  2.4 GHz Wi-Fi Speed 574 Mbps
  5 GHz Wi-Fi Streams 3T3R (3×3 MIMO)
  2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
  Wi-Fi Antennas 5× Internal
  5 GHz Antenna Gain Max 5.6 dBi
  2.4 GHz Antenna Gain Max 4.8 dBi
  Beamforming True
Range Performance Max Range 200 m
Wall Performance Wooden Wall Up to 10 cm
  Concrete Wall Up to 20 cm or two concrete walls under 10 cm

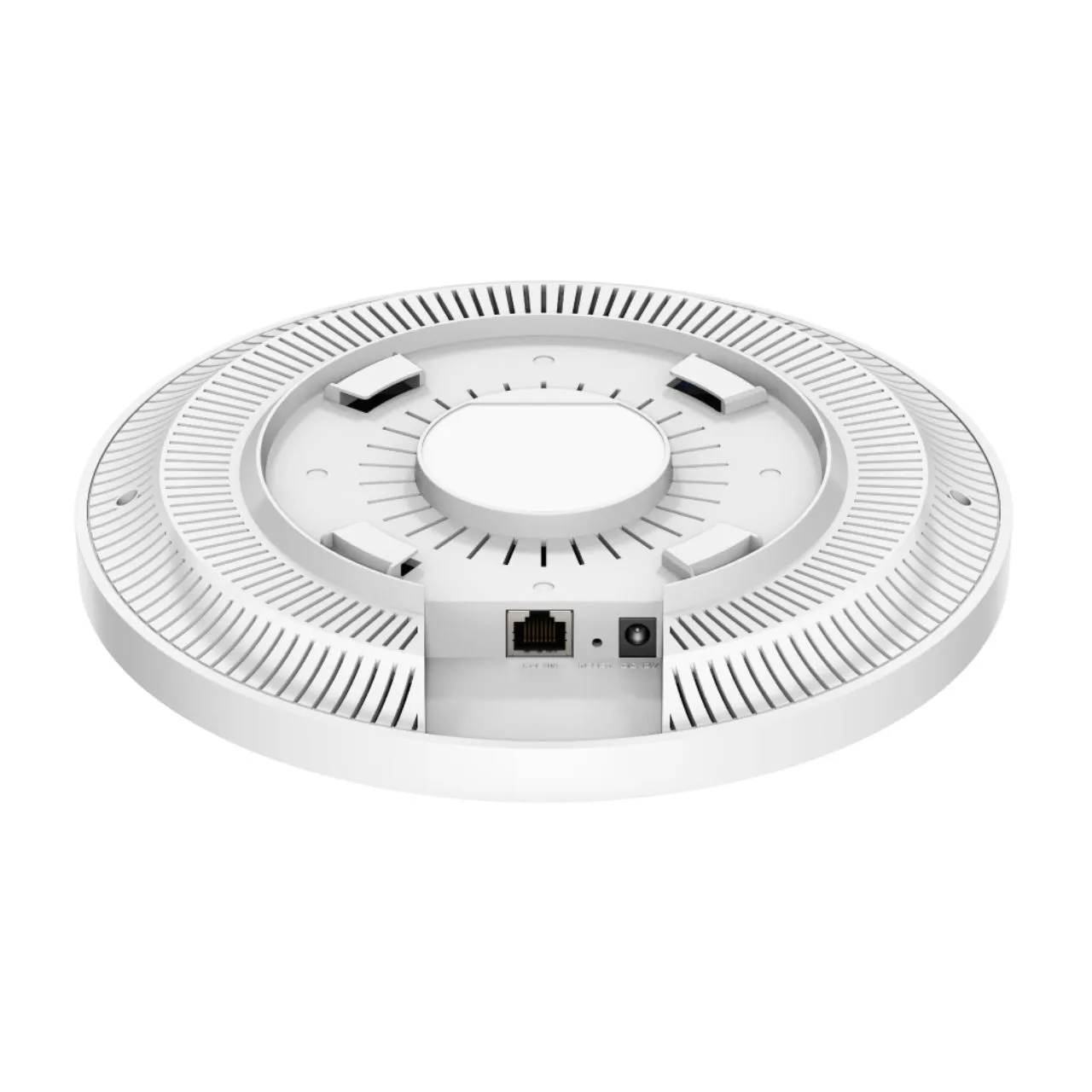

Interfaces 2.5G RJ45 Ports 1
Ethernet Notes PoE Support Accepts PoE powering
LED System LED Available
Physical Buttons Reset Button Available
Power Input   DC Jack, PoE via Ethernet Port
Power Power Methods DC, 802.3at/af PoE, Passive PoE
  DC Power 12V 1.5A
  Passive PoE 48 ~ 57V
  AP3000_P | PoE Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 48V Passive PoE
Power Consumption Max 12 W (PoE or DC)
  Idle 6.1 W (PoE or DC)
Reliability Advanced Hardware Watchdog
  ESD Contact Protection 4kV
  ESD Air Protection 8kV
Environment Operating Temperature -10 ℃ ~ 60 ℃
  Storage Temperature -40 ℃ ~ 70 ℃
  Operating Humidity 10% ~ 90% non-condensing
  Storage Humidity 5% ~ 90% non-condensing
Certifications   FCC, CE

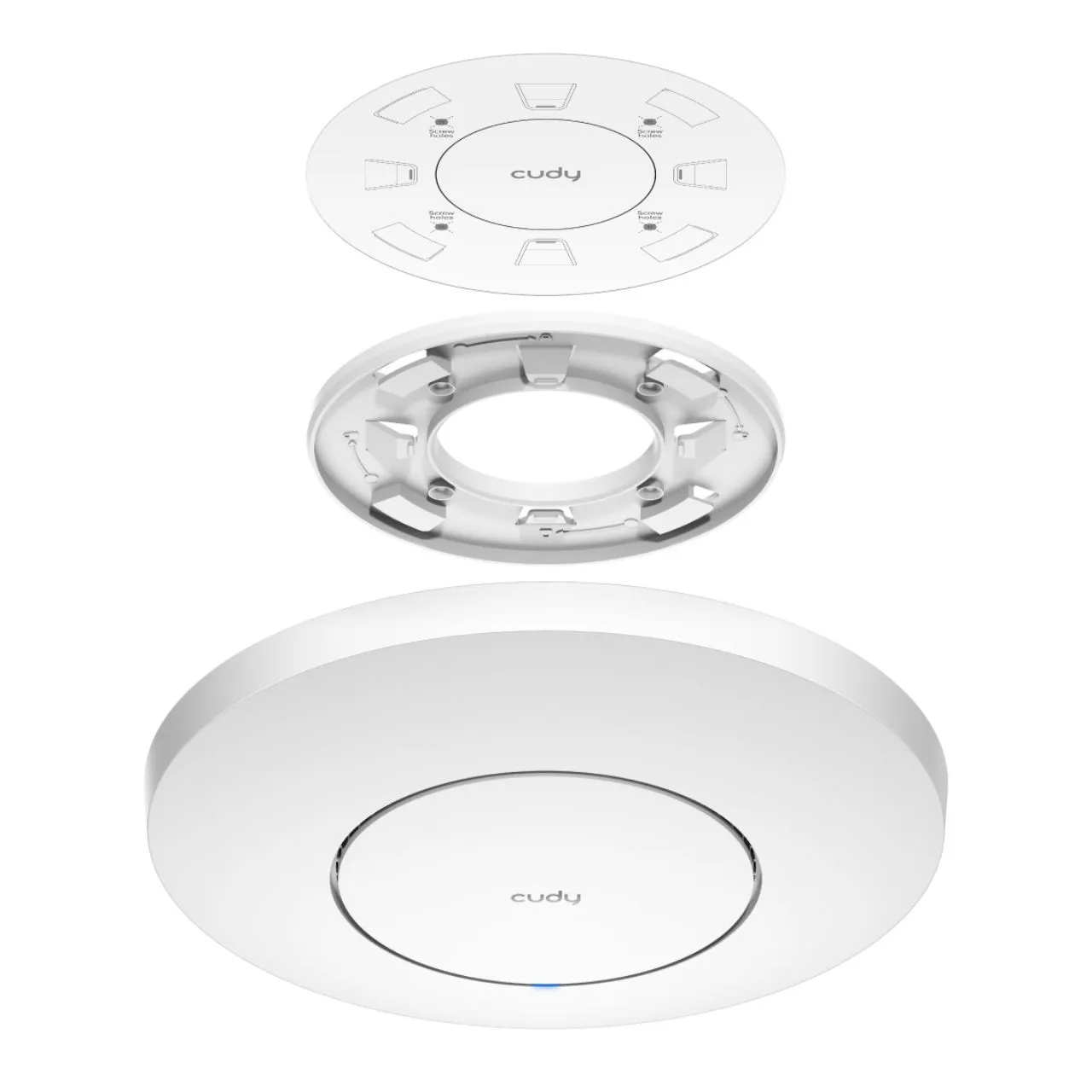

Mechanical Installation Wall-mount
Ceiling-mount
  Dimensions Φ231.9 × 57.1 mm
  Product Weight 494 g
Package Content   AP3000
Power Adapter
Mounting Kit
Ethernet Cable
Installation Guide
SKU WIF-CU-00008
Barcode # 6971690793289
Brand Cudy
