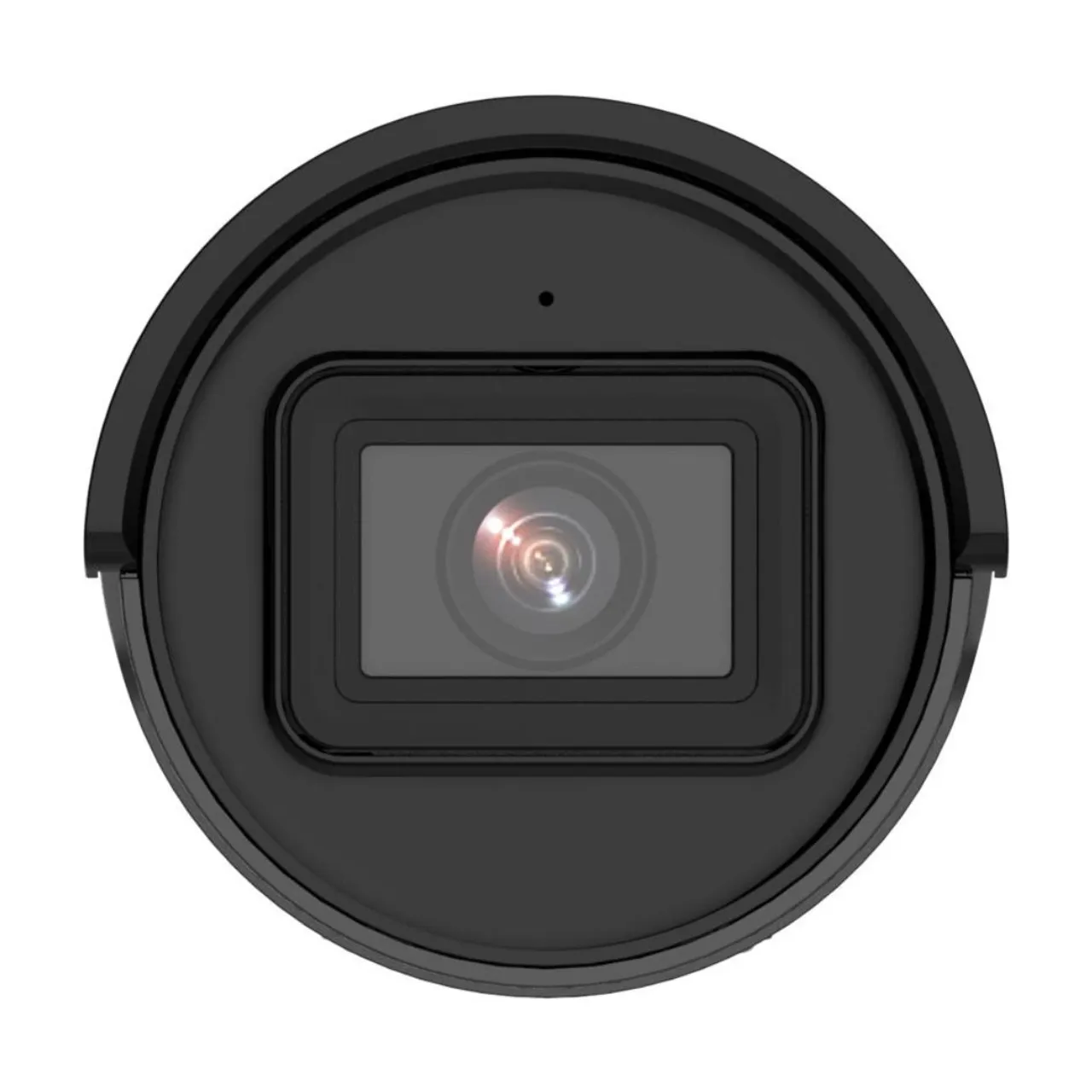

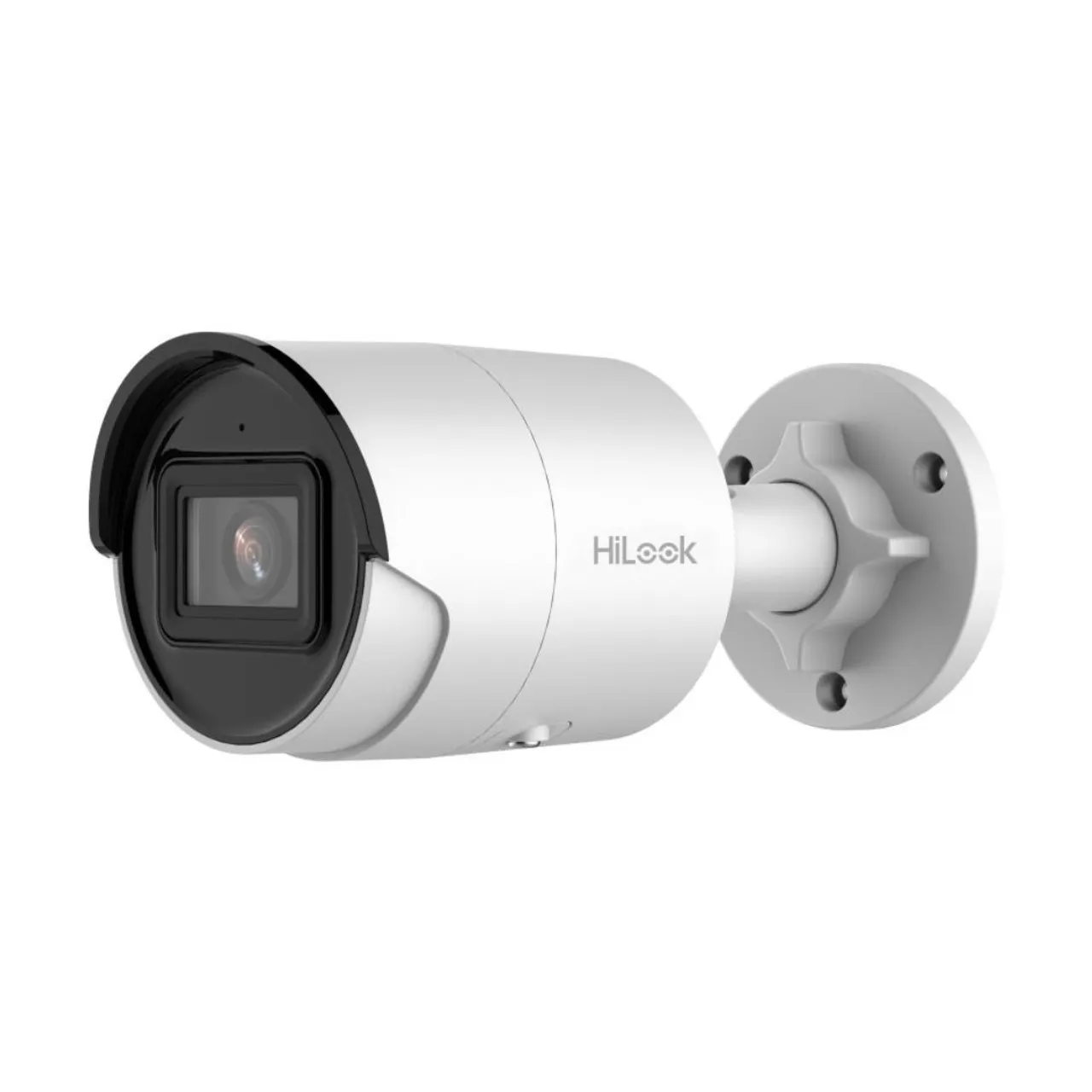

The Hikvision HiLook IPC-B261H-MU 6MP Bullet Camera delivers exceptional image quality with its 6 MP resolution, ensuring clear and detailed footage in various lighting conditions. The camera’s 120 dB Wide Dynamic Range (WDR) technology guarantees effective imaging even in scenes with strong backlight, providing consistent clarity in all environments.
Equipped with advanced deep learning algorithms, the IPC-B261H-MU excels in human and vehicle classification. This AI-powered feature helps improve surveillance accuracy by identifying and distinguishing targets, enabling more efficient monitoring and reducing false alerts.
The camera integrates a built-in microphone, offering real-time audio capabilities to complement video footage. This feature allows for complete situational awareness, making it a valuable addition for environments where both visual and auditory surveillance are necessary.
Designed for demanding environments, the IPC-B261H-MU features an IP67 rating, making it both water and dust resistant. Its rugged construction ensures reliability in outdoor settings, regardless of weather conditions, making it suitable for both residential and commercial applications.
The IPC-B261H-MU utilises H.265+ compression technology to significantly reduce bandwidth and storage requirements without compromising video quality. This efficient compression ensures long-term storage without overwhelming network infrastructure, making it an ideal choice for large-scale surveillance setups.
The camera supports Power over Ethernet (PoE), simplifying installation by reducing the need for separate power cables. This feature streamlines the setup process and provides flexible placement options, making the camera perfect for a wide range of security systems.
The IPC-B261H-MU offers versatile mounting options with its adjustable pan, tilt, and rotation angles. With a 2.8 mm fixed lens providing a wide field of view (107° horizontal, 57° vertical), it ensures comprehensive coverage of the monitored area. Additionally, the camera's lens is designed for optimal image clarity with an F1.6 aperture for enhanced low-light performance.
Category | Specification | Details |
---|---|---|
Model Version | IPC-B261H-MU | 6 MP Fixed Bullet Network Camera |
Camera | Image Sensor | 1/2.8" Progressive Scan CMOS |
Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON) B/W: 0 Lux with IR |
|
Shutter Speed | 1/3 s to 1/100,000 s | |
Wide Dynamic Range | 120 dB | |
Day & Night | IR cut filter | |
Angle Adjustment | Pan: 0° to 360° Tilt: 0° to 90° Rotate: 0° to 360° |
|
Lens | Lens Type | Fixed focal lens |
Focal Length & FOV | 2.8 mm horizontal FOV 107° vertical FOV 57° diagonal FOV 128° |
|
Aperture | F1.6 | |
Illuminator | IR Wavelength | 850 nm |
IR Range | Up to 40 m | |
Video | Max. Resolution | 3200 × 1800 |
Main Stream | 50 Hz: 20 fps (3200 × 1800) 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
|
Sub-Stream | 50 Hz: 25 fps (1280 × 720, 960 × 540, 640 × 480, 640 × 360) | |
Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | |
Compression | H.265/H.264/H.264+/H.265+ | |
Audio | Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw) 16 Kbps (G.722.1) 16 Kbps (G.726) 16 Kbps to 64 Kbps (AAC) 32 to 192 Kbps (MP2L2) 8 to 320 Kbps (MP3) |
|
Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz | |
Environment Noise Filtering | Yes | |
Network | Protocols | TCP/IP, ICMP, HTTP HTTPS, FTP, DHCP DNS, DDNS, RTP RTSP, NTP, UPnP SMTP, IGMP, 802.1X QoS, IPv4, IPv6 UDP, Bonjour, SSL/TLS PPPoE, SNMP |
Simultaneous Live View | Up to 6 channels | |
Security | Password protection complicated password HTTPS encryption IP address filter Security Audit Log TLS 1.1/1.2 |
|
Interface | Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
On-Board Storage | MicroSD card slot supports up to 256 GB |
|
General | Camera Material | Aluminium alloy body IR cover: plastic |
Camera Dimensions | Ø 70 mm × 161.7 mm | |
Package Dimensions | 216 mm × 121 mm × 118 mm | |
Camera Weight | Approx. 485 g | |
Package Weight | Approx. 744 g | |
Power Consumption | 12 VDC 0.5 A, max. 6 W PoE (802.3af) max. 7.2 W |
|
Power Supply | 12 VDC ± 25% PoE: 802.3af, Class 3 |
|
Approval | EMC | FCC, CE-EMC, RCM, IC, KC |
Safety | UL, CB, CE-LVD, BIS | |
Environment | CE-RoHS WEEE Reach |
|
Protection | IP67 (IEC 60529-2013) |
SKU | SEC-HL-00006 |
Brand | HikVision HiLook |
