EZVIZ CS-H8c (4MP), 4MP PTZ Camera, 4mm Lens, 100° Diagonal, Pan 350°, Tilt 80°,
SKU: SEC-EZ-00005
The EZVIZ CS-H80x Dual camera boasts an impressive 4K resolution, offering detailed and sharp images with a maximum resolution of 3840 × 2160 pixels. Whether you're monitoring large areas or focusing on intricate details, the camera captures every moment in stunning Ultra HD quality. With its advanced image sensor, it ensures high-definition footage with excellent colour and contrast in both day and night conditions.
Equipped with 340° pan and 70° tilt capabilities, the CS-H80x Dual camera ensures comprehensive coverage. You can easily adjust the camera’s view, whether you're monitoring a large outdoor space or a specific area of interest. The combination of these movements allows you to capture footage from virtually any angle, ensuring no detail goes unnoticed.
The H80x camera incorporates AI-powered human and vehicle shape detection. This intelligent feature significantly reduces false alarms caused by non-relevant motion, such as animals or environmental factors. The camera’s ability to distinguish between different types of motion ensures that you’re only alerted to important events, enhancing the efficiency of your surveillance system.
With black and white night vision up to 30 metres, the CS-H80x Dual camera provides clear and reliable surveillance even in total darkness. The camera's advanced infrared technology ensures that you can continue monitoring significant areas with sharp clarity, regardless of lighting conditions.
The EZVIZ CS-H80x Dual camera features built-in two-way audio, allowing you to communicate directly through the camera. Whether you need to warn off intruders, speak with a visitor, or simply interact with someone at your property, this feature ensures convenience and real-time communication, no matter where you are.
Designed to withstand harsh outdoor conditions, the CS-H80x Dual camera has an IP65 rating, ensuring its durability in both hot and cold environments. Whether it's rain, snow, or extreme temperatures, this weatherproof camera is built to continue working efficiently in challenging conditions, making it perfect for both residential and commercial security.
For added flexibility, the EZVIZ CS-H80x Dual supports both local storage via microSD cards (up to 512 GB) and cloud storage with EZVIZ CloudPlay (subscription required). This dual-storage option ensures that your footage is safely stored and easily accessible, whether you prefer to keep data locally or securely in the cloud for remote viewing.
Category | Specification | Details |
---|---|---|
Model Version | CS-H80x-R100-8G82WKFL | EZVIZ 4K Pan & Tilt Wi-Fi Camera |
Camera | Image Sensor | 1/2.7” + 1/2.9” Progressive Scan CMOS |
Shutter Speed | Self-adaptive shutter | |
Lens | Specifications | 4mm @ F1.0 (1080p) 4mm @ F1.6 (4K) |
Viewing Angle | 46° (Vertical) 87° (Horizontal) 103° (Diagonal) |
|
Pan & Tilt | Pan | 340° |
Tilt | 70° | |
Lighting | Minimum Illumination | 0.01 Lux @ (F1.0, AGC ON) 0 Lux with IR |
Lens Mount | Type | M12 |
Lighting | Black & White Night | 30m |
Video & Audio | Max Resolution | 3840 × 2160 (4K) |
Frame Rate | Self-Adaptive during network transmission | |
Video Compression | H.265 / H.264 | |
Network | Wi-Fi Standard | IEEE802.11b 802.11g 802.11n |
Frequency Range | 2.4 GHz ~ 2.4835 GHz | |
Channel Bandwidth | Supports 20MHz | |
Security | 64 / 128 - bit WEP WPA / WPA2 WPA-PSK / WPA2 - PSK |
|
Wi-Fi Pairing | AP pairing | |
Functions | Smart Alarm | AI-powered human shape detection AI-powered vehicle shape detection |
Two-way Talk | Supports | |
Auto Tracking | Supports | |
Storage | Local Storage | Supports microSD Card (Up to 512 GB) |
Cloud Storage | Supports EZVIZ CloudPlay (Subscription required) |
|
General | Operating Conditions | 30ºC ~ 50ºC Humidity 95% or less (non-condensing) |
IP Grade | IP65 | |
Power Supply | DC 12V/1A | |
Power Consumption | MAX. 12W | |

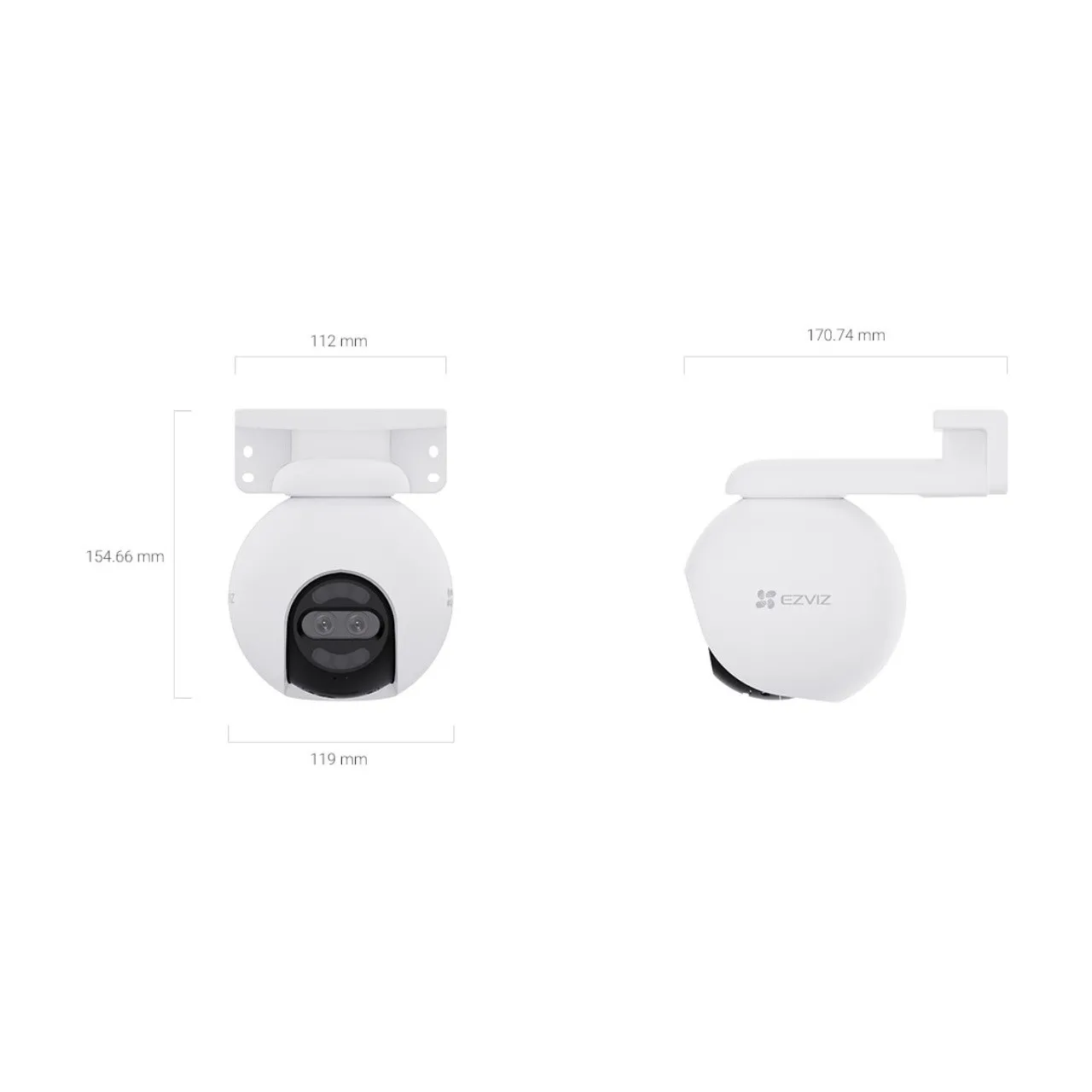

Physical | Dimensions | 170 × 112 × 154 mm |
Packaging Dimensions | 205 × 176 × 194 mm | |
Weight | Product Weight | 630 g (22.22 oz) |
With Package | 1035 g (36.5 oz) | |
Certifications | Types | CE UL WEEE RoHS REACH |
SKU | SEC-EZ-00008 |
Barcode # | 6941545635781 |
Brand | Ezviz |
