EZVIZ CS-H8c (4MP), 4MP PTZ Camera, 4mm Lens, 100° Diagonal, Pan 350°, Tilt 80°,
SKU: SEC-EZ-00005

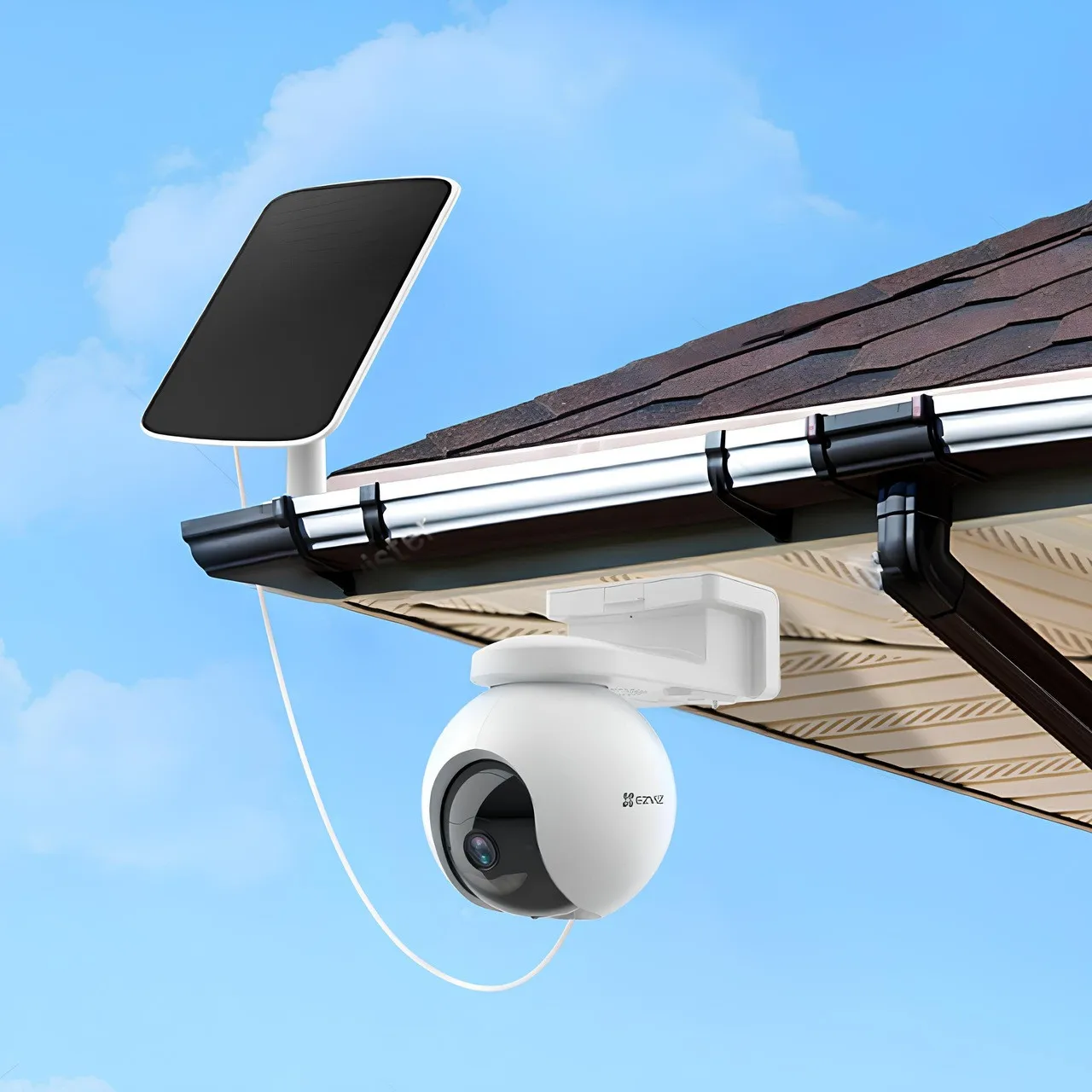

Enjoy uninterrupted surveillance with this advanced security solution, combining a high-performance battery-powered camera and a solar charging panel. This kit ensures continuous monitoring with 360-degree coverage and intelligent detection while harnessing solar energy for sustainable, hassle-free operation. Ideal for remote locations and outdoor spaces, it delivers clear, high-resolution video and smart alerts to keep you informed at all times.
Maintain round-the-clock security with smart detection, clear video, and sustainable solar power, keeping your home or business protected without interruptions.
Product Specifications | |
---|---|

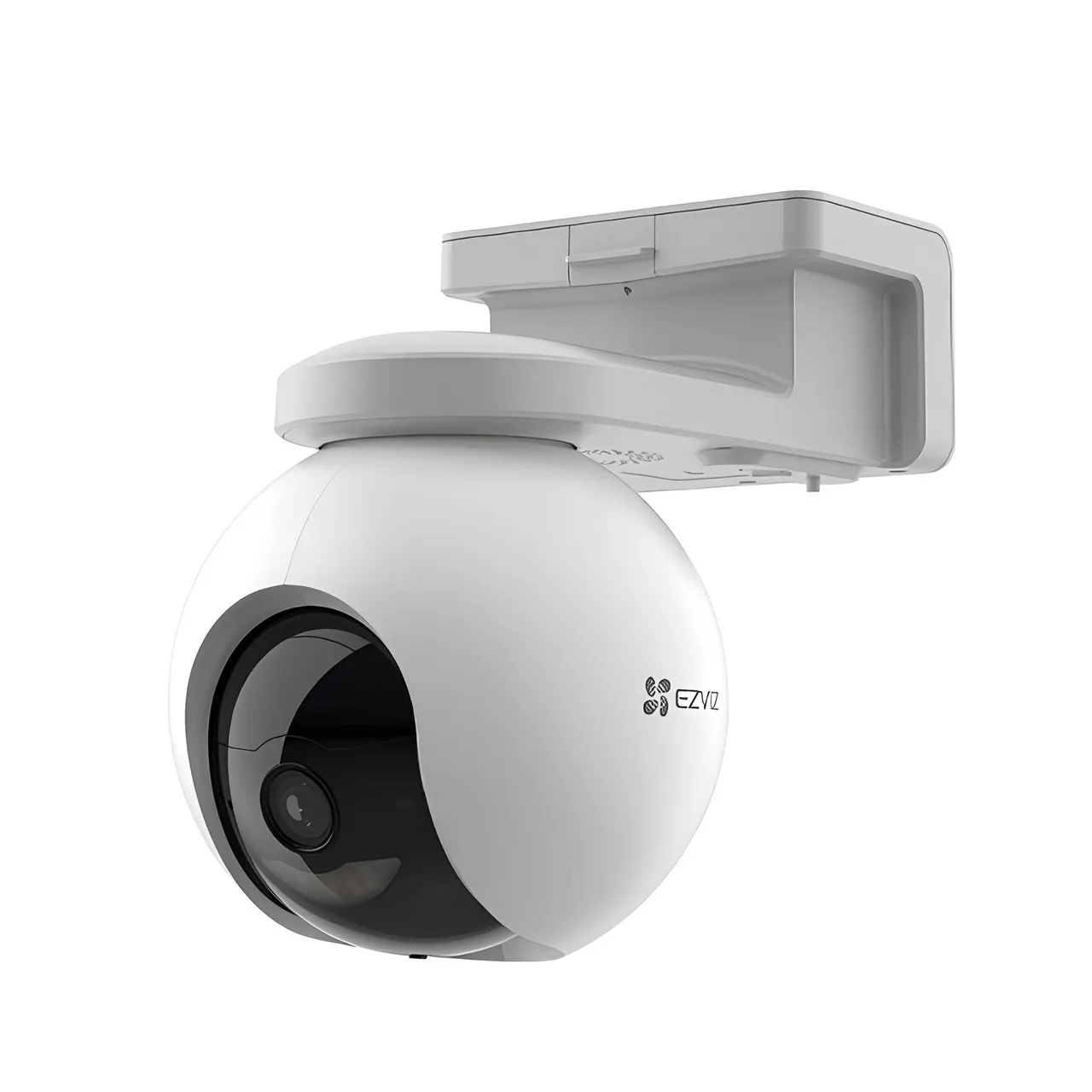

Camera | |
Image Sensor | 1/3” 4-Megapixel Progressive Scan CMOS Sensor |
Minimum Illumination | 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR (Data is obtained from EZVIZ laboratories) |
Shutter Speed | Self-adaptive shutter |
Lens | 4mm @ F1.6 Viewing angle: 100° (Diagonal), 83° (Horizontal), 44° (Vertical) |
PT Angle | Pan: 340°, Tilt: 65° |
Day & Night | IR-Cut filter with auto-switching |
DNR | 3D DNR |
Night Vision | Up to 49 ft / 15 m |
Video & Audio | |
Max. Resolution | 2560 × 1440 |
Frame Rate | 15fps. Self-Adaptive during Network Transmission |
Video Compression | H.265 / H.264 |
Video Bit Rate | Quad HD; HD; Standard. Adaptive Bit Rate. |
Audio Bit Rate | Self-Adaptive |
Max. Bitrate | 2 Mbps |
Network | |
Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
Frequency Range | 2.4 GHz ~ 2.4835 GHz |
Channel Bandwidth | Supports 20 MHz |
Security | 64 /128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps |
Wi-Fi Pairing | AP pairing |
Protocol | EZVIZ cloud proprietary protocol |
Interface Protocol | EZVIZ cloud proprietary protocol |
Minimum Network Requirement | 4Mbps |

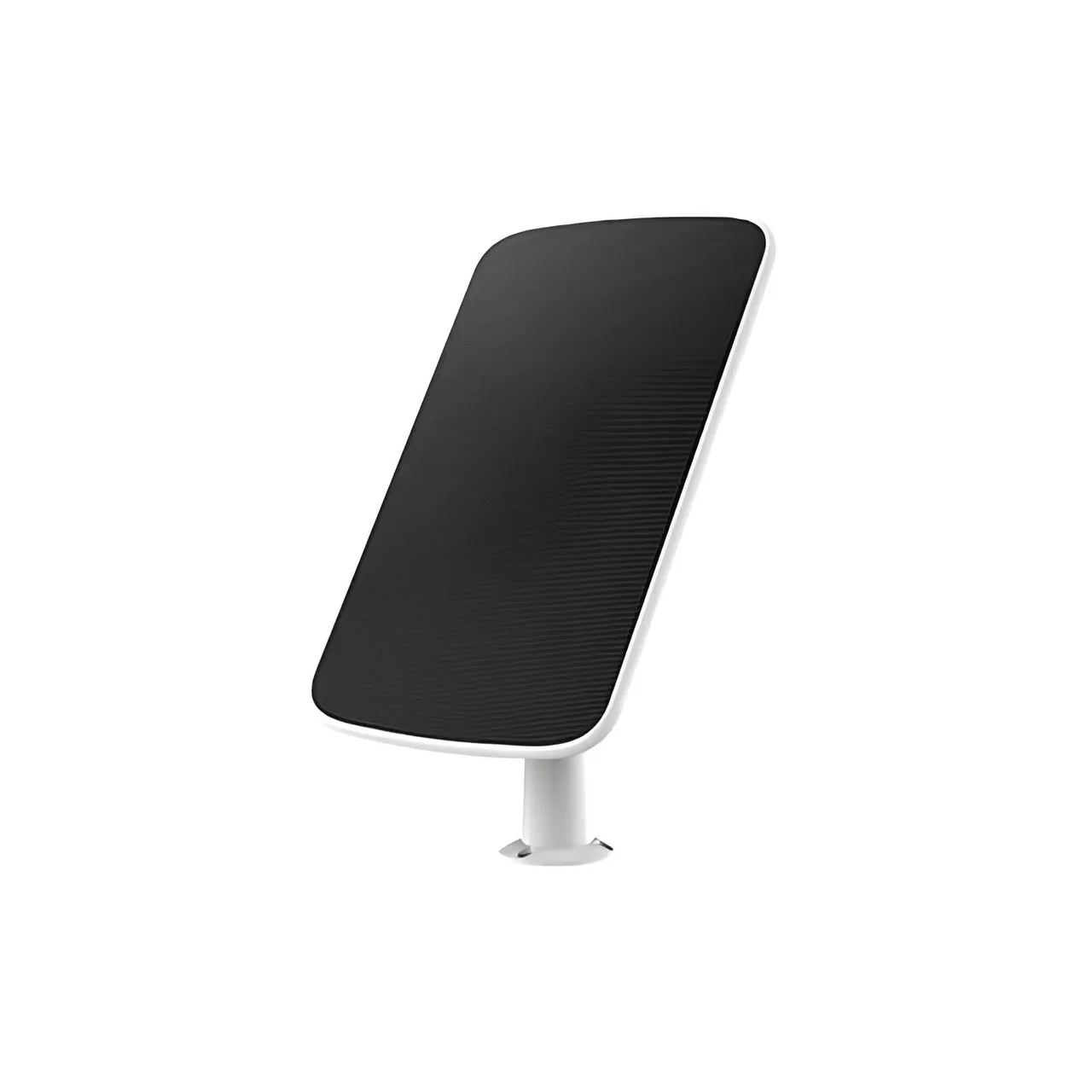

Solar Panel | |
Model | CS-CMT-Solar Panel-E |
Power Voltage | 6V ± 5% |
Max. Power Current | 1030 mA ± 5% |
Max. Power | 6.18 W |
Transformation Efficiency | 21.6% |
Operation Temperature | -20°C - 60°C (-4°F - 140°F); Humidity 90% or less (non-condensing) |
Charging Temperature | 0°C - 45°C (Recommended for battery camera charging) |
IP Grade | IP65 |
SKU | SEC-EZ-00016 |
Brand | Ezviz |
