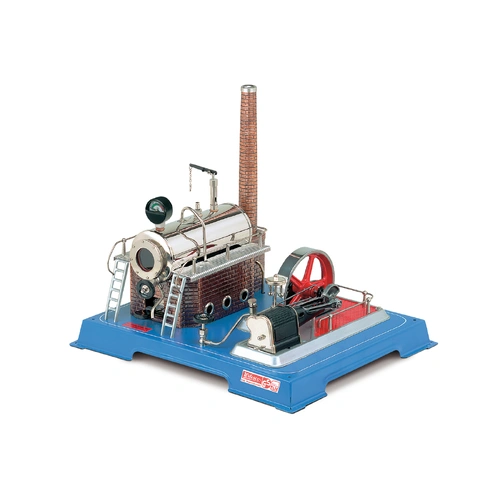

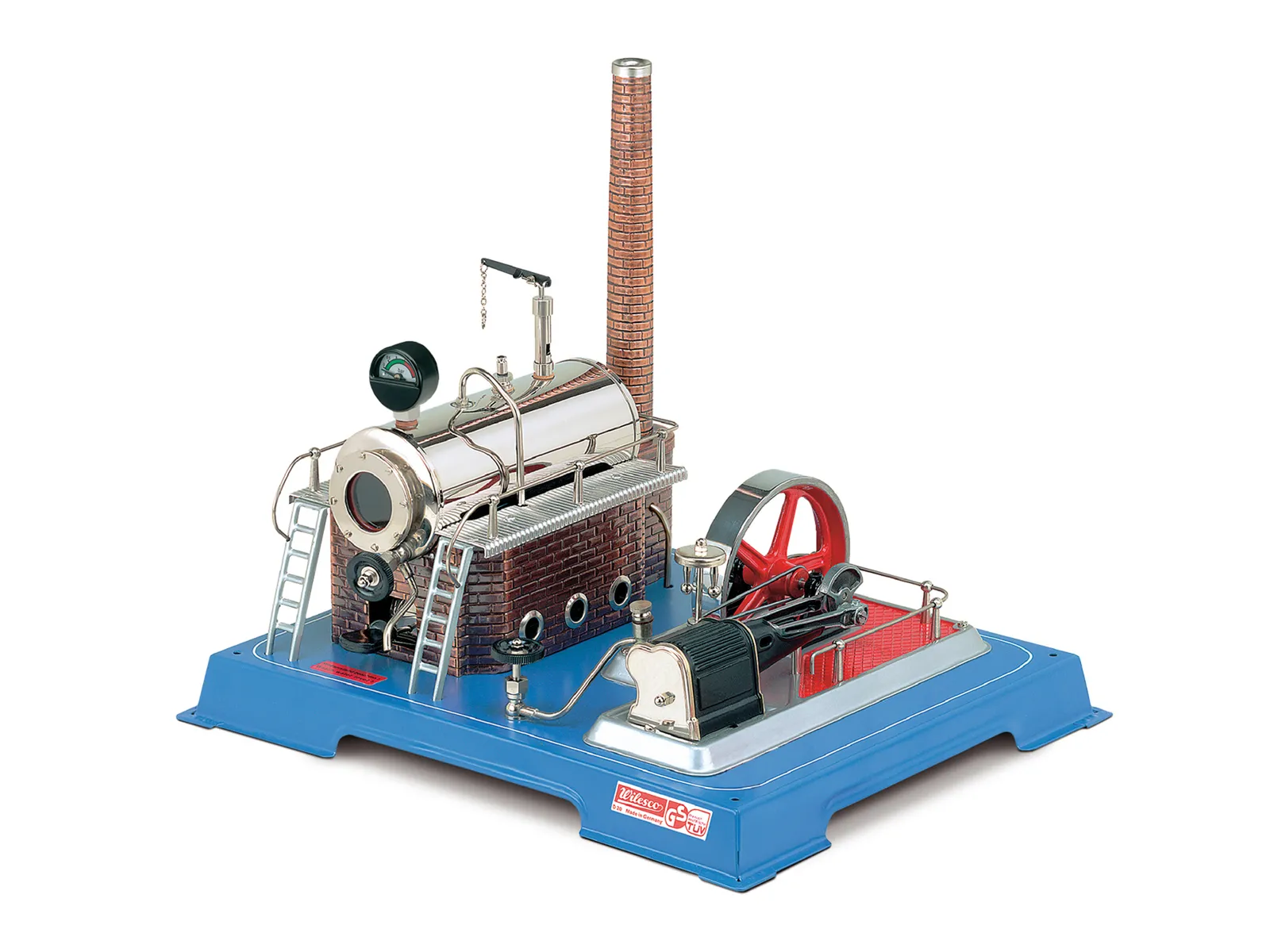

WILESCO D20 STEAM ENGINE - 500CC WITH DOUBLE ACTION Steam engine D20 heated with Witabs This stationary steam engine is the most popular machine in the WlLESCO range.

The cauldron of 6.5 x 16.5 cm has a volume of 500 ccm.

The steam pressure can be constantly monitored via the pressure gauge and the drain cock can be used to remove any residual water from the boiler after the end of operation.

Our D20 is a model steam engine with a lot of power, which is ideally suited to operate larger model systems with it. A large selection of suitable drive models can be found here in the shop.

Their really steaming chimney is also particularly fun, the steam outlet of which can be regulated via the steam valve.

Like all Wilesco steam engine models, the D20 is "Made in Germany" and purrs reliably even after many years if it is adequately oiled and the boiler fill level is observed.

The stationary steam engine is powered by our Witabs dry fuel, one load of Witabs is enough for about 10-15 minutes of steam fun.

Further details on the Wilesco steam engine model D20: Flywheel with a diameter of 10 cm that can be started in both directions of rotation Spring safety valve Steam whistle with chain hoist Steam shut-off hand wheel valve, centrifugal regulator and steam jet oiler. double-acting cylinder system with a diameter of 13 mm and a stroke of 16 mm Base dimensions: 29 x 35 cm Height: 32 cm Net weight: 2.3 kg Gift packaging: 36 x 30 x 20 cm Boiler volume: 500 ccm Heating D20: dry fuel (3 blocks of dry fuel included in delivery)
