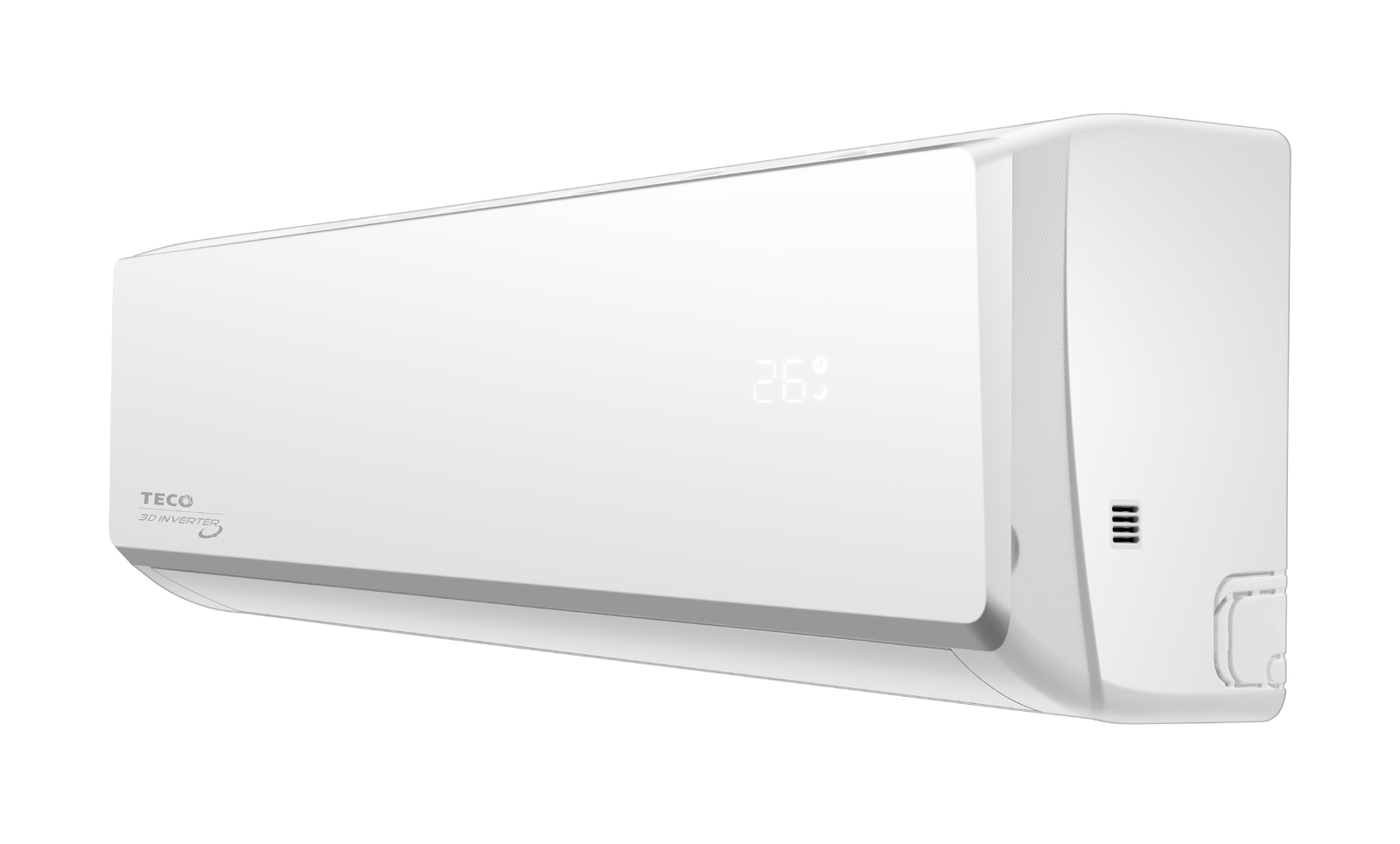

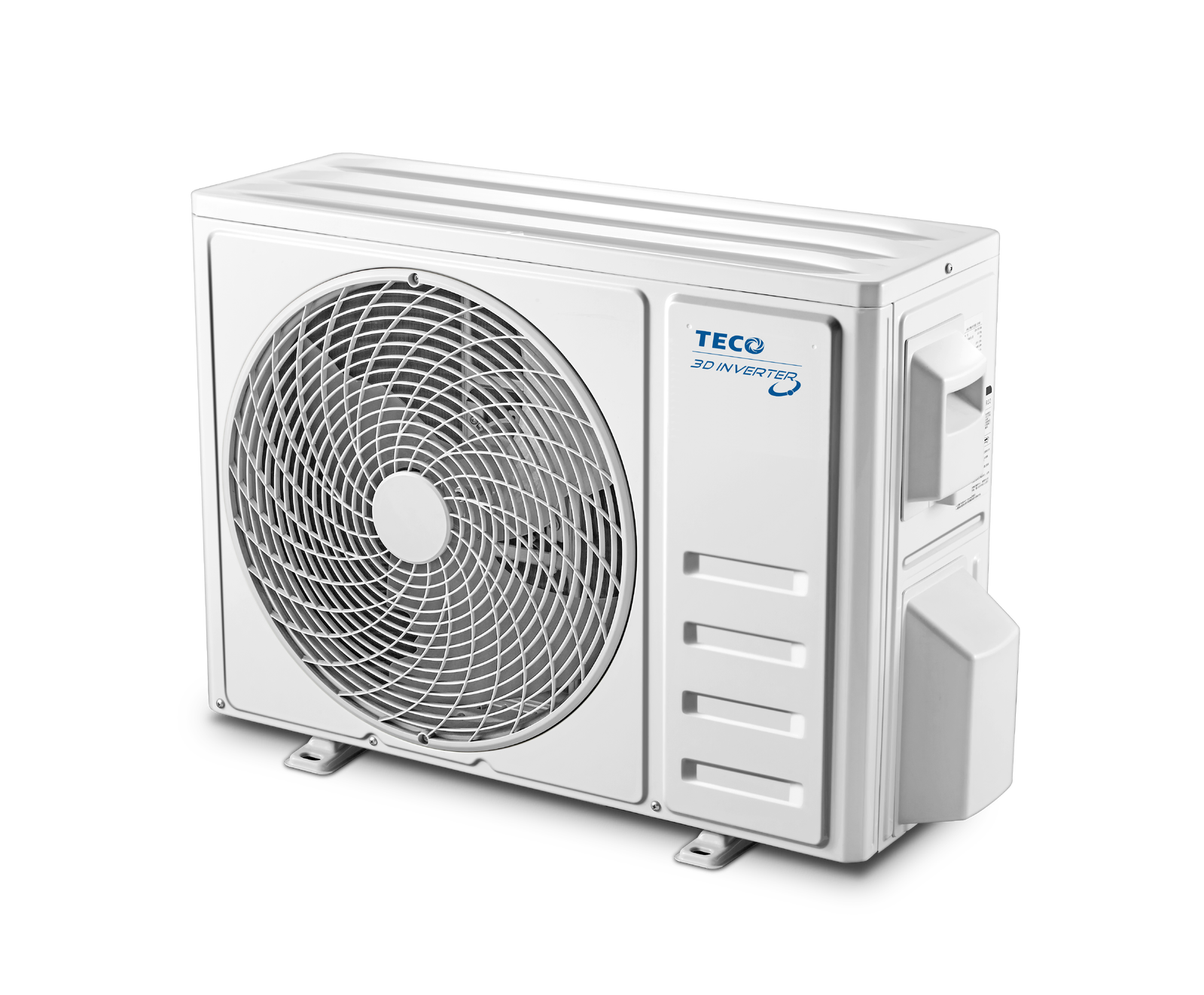

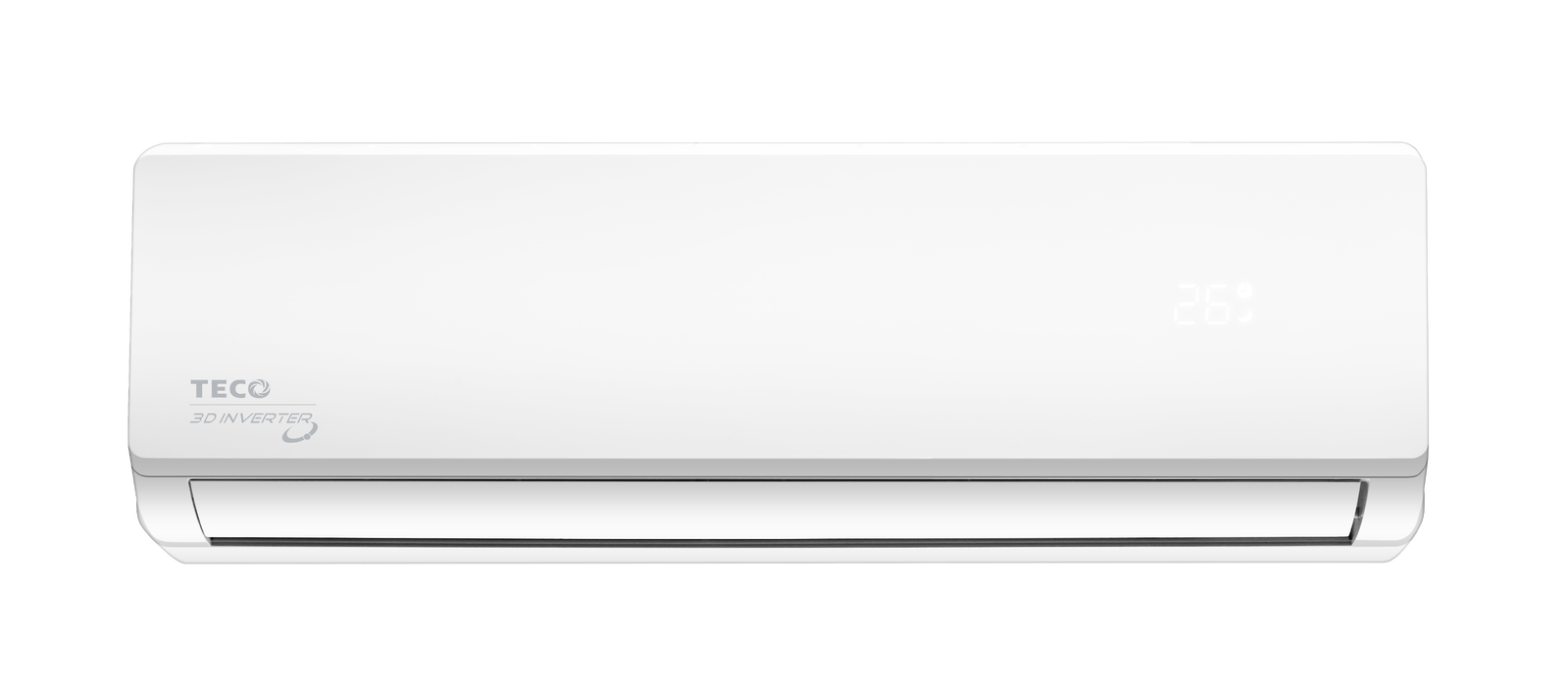

The TECO 8.8kW Inverter Reverse Cycle Split System Air Conditioner from the Platinum 3D series is expertly designed to deliver powerful heating and cooling performance with a high-efficiency inverter compressor. Featuring advanced DC inverter technology, it ensures optimal energy consumption and maintains a consistent temperature for ultimate comfort. Additionally, its intelligent air distribution system and Eco Mode functionality contribute to its superior energy efficiency, making it an ideal choice for year-round climate control.

  • Gold Fin Protection: Prevents corrosion and maintains heat exchange efficiency.
  • Exceptional Energy Efficiency: Offering outstanding energy efficiency to keep running costs down.

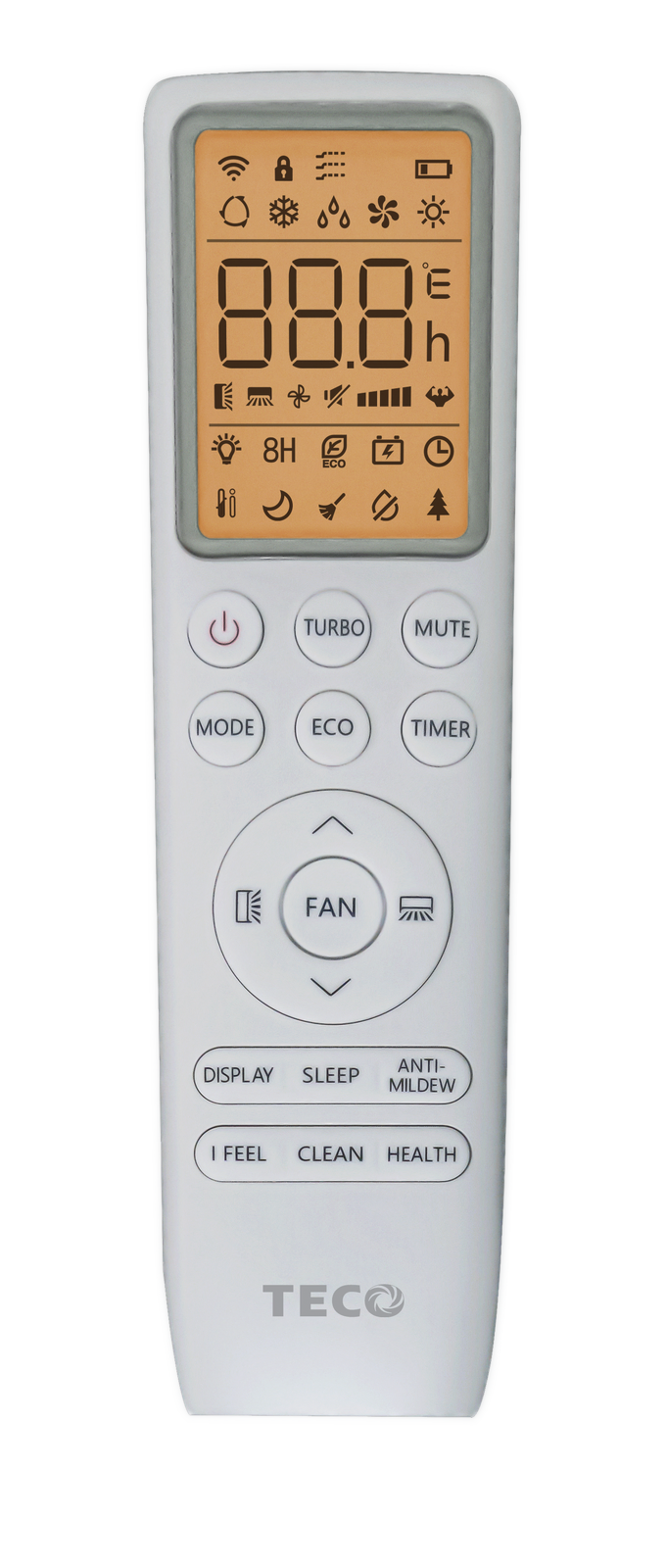

  • Built-in Wi-Fi: Control your unit from anywhere using popular smart devices and speakers (compatible with Google and Alexa).
  • Clean Indoor Self-Cleaning: Uses a rapid cooling and defrosting process to eliminate dust and dirt, followed by a drying cycle.
  • 3D Air Flow: Integrating vertical and horizontal auto swing to evenly distribute conditioned air throughout your space.
  • ECO Mode: An energy-saving mode that adjusts the fan speed and frequency for lower running costs.
  • Louvre Memory: Remembers your last louvre settings for convenience.
  • Timer Mode: Schedule your unit to turn on or off at your convenience — perfect for cooling your home before you arrive or ensuring it shuts off after you’ve gone to bed.
  • Scan to Install and Download SmartLife-SmartHome App: Seamlessly set up the app for remote control of your air conditioner.
  • Interactive Digital Display: Easily access and interpret key information with a clear front panel display.
  • 4 Way Auto Swing: Delivers even and continuous distribution of air, for faster cooling or warming.
  • R32 Refrigerant: Enhanced performance with no ozone depletion and lower Global Warming Potential (GWP).
  • Service Friendly: Equipped with diagnostics and easily accessible panels for simplified maintenance.
  • Silent Mode: Reduces fan and compressor noise for a quieter environment.
  • D.R.E.D. Connection: Participate in electricity provider programs to cap electricity demand (available in Queensland).
  • Auto Restart: Memorizes your settings and restores them after a power outage.
  • Turbo Fan Mode: Quickly reaches desired temperatures by maximizing cooling or heating output.
  • Cold Air Prevention: Prevents cold air from blowing out during heating start-up for improved comfort.
  • Long Distance Air Flow: Ensures thorough and even air distribution throughout the room.
  • Refrigerant Leak Detection: Detects leaks to protect the compressor and ensure safe operation.
  • High Density Filter: Captures more dust and pollen for cleaner air quality.
  • Sleep Mode: Adjusts temperature gradually for a comfortable sleeping environment while saving energy.
TECO Model No. TWS-TSO88H3DVKT
TECO Model EAN Code 9346998007470
TECO Model No. TWS88H3DVKT
TECO Model EAN Code 9346998007487
TECO Model No. TSO88H3DVKT
TECO Model EAN Code 9346998007494
Rated cooling capacity W 8800 (2000~9200)
Rated heating capacity W 8800 (2000~9500)
AEER for cooling W/W 3.494
ACOP for heating W/W 3.879
TCSPF for cooling hot&humid   4.972
mixed   4.653
cold   4.856

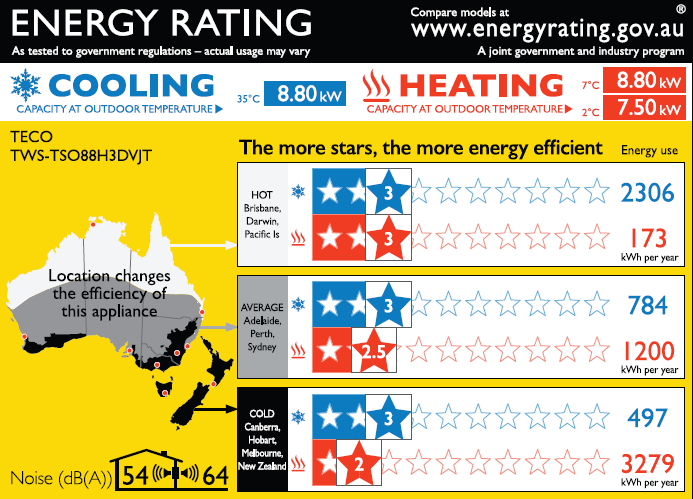

Energy star for cooling hot&humid   3.0
mixed   3.0
cold   3.0
HSPF for heating hot&humid   4.639
mixed   4.032
cold   3.518
Energy star for heating hot&humid   3.0
mixed   2.5
cold   2.0
Operation temperature range 16℃~31℃
Ambient temperature range Outdoor Cooling:15-50/Heating:-15-24
Indoor Cooling:17-32/Heating:0-27
Moisture removal   L/H 3.2
Sound Power Indoor dB(A) 54
Outdoor dB(A) 64
Pressure High(DP) MPa 3.7
Low(SP) MPa 1.2
Electrical Data
Power supply   V 220-240V~50Hz
Voltage Range   V 165~265
Running current Cooling A 10.9(1.8~15.5)
Heating A 9.9(1.8~15.5)
Rated input Cooling W 2500(350~3100)
Heating W 2250(350~3340)
Max current cooling/heating A 15.5/15.5
Max input
cooling/heating
  W 3100/3340
Standby power   W 5.4
Refrigerating System
Refrigerant   kg R32/1.500
Fan System
Indoor air circulation Cooling/heating m3/h 1350/1350
Indoor fan speed H/M/L Cooling rpm 1250/1150/1080/970/870/800/
750
Heating rpm 1250/1150/1080/970/870/800/
750
Dry rpm 800
Sleep rpm 800
Indoor fan motor output   W 45
Outdoor fan speed   rpm 850
Outdoor fan motor
output
  W 85
Connections
Connecting Pipe Gas Inches Φ15.88(5/8”)
Liquid Inches Φ6.35(1/4”)
Max. Pipe length   Meters 30
Max. Height difference   Meters 20
Connecting Wiring Size x Core number 0.75×4
Others
Suitable area (Reference only) m2 30~55
Net dimensions
(W x D x H)
Indoor mm 1191×360×258
Outdoor mm 978×421×803
Net weight Indoor kg 18
Outdoor kg 46.5
Packing dimensions (Wx D x H ) Indoor mm 1260×430×338
Outdoor mm 1022×480×811
Gross weight Indoor kg 21.5
Outdoor
(without pipe)
kg 50
Outdoor
(with
pipe)
kg 52
Loading Capacity 20’/40’GP/40’HQ 44/95/105
SKU TWS-TSO88H3DVKT
Barcode # 9346998007470
Brand TECO
