The Powertec Starlink Gen3 DC/DC Converter enables you to power a Gen3 Standard Starlink dish from 9-36V. Ideal for economically powering the dish in off grid applications in vehicles, caravans, motorhomes, homes and from solar.

Powering your dish from DC, instead of AC with an inverter, could save up to 15% in power consumption. When you are off grid using batteries, this can be a significant saving.

Connection to the Starlink dish is plug and play, and the existing Starlink router can be replaced with a 12V WiFi router. The existing Starlink Gen3 Standard network cable is used to power the dish.

Features

  • Designed for off grid caravans, motorhomes, homes, vehicles and remote sites
  • Enables a Starlink Gen3 Standard dish to be powered from 9-36V DC
  • Enables a Starlink Mini dish to be powered from 12V DC with a long ethernet cable via PoE, requires an additional Splitter Cable
  • Plug and play installation
  • Compact in size
  • 150W power output

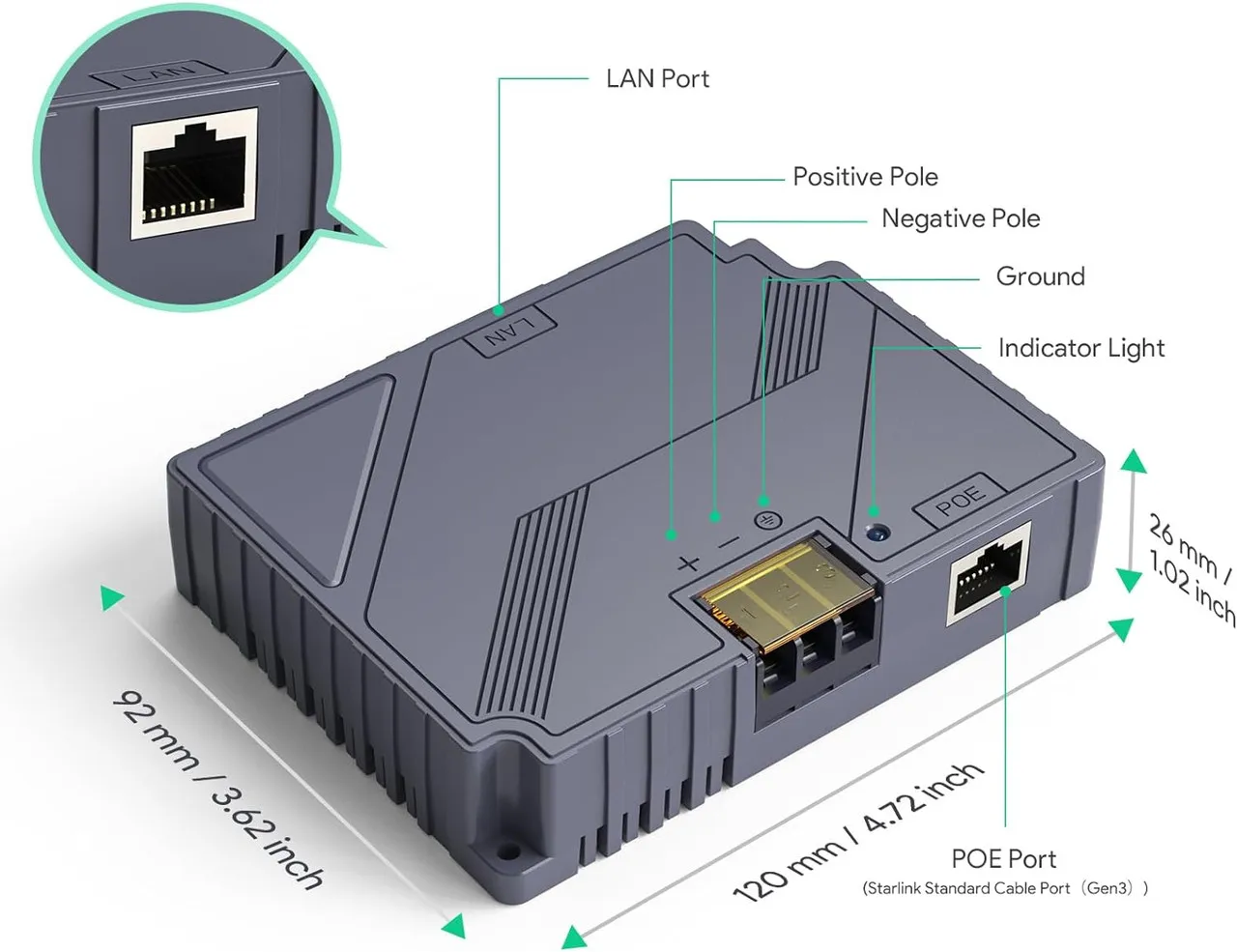

  • 10/100/1000 LAN Port for connecting to router or computer
  • LAN Port for connecting to dish
  • Australian RCM Approved

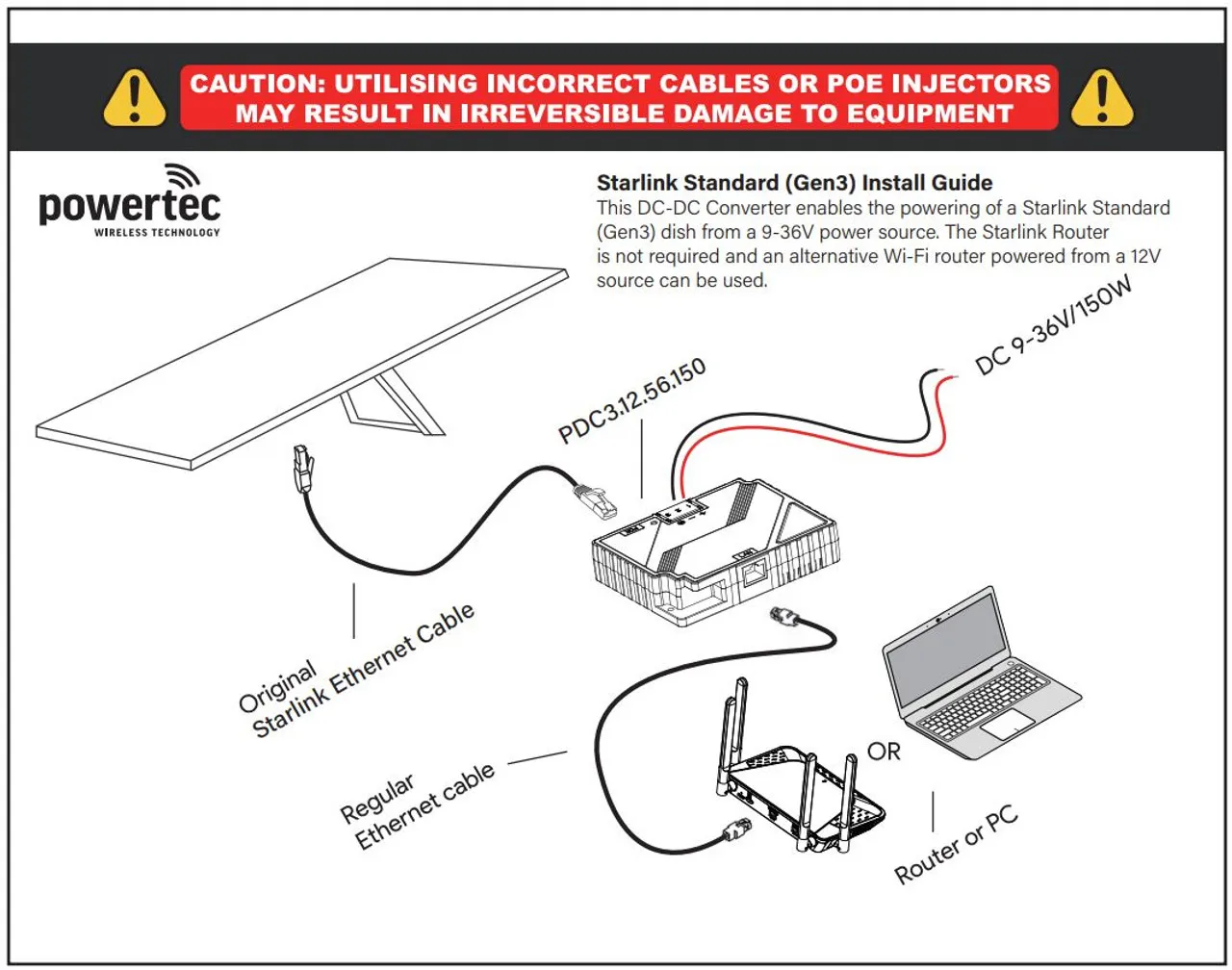

Install Diagram

R

Specification Details
LAN LAN*1, PoE*1, Power
Pin Configuration +V: 1,2,3,6; -V: 4,5,7,8
Network Speed 10/100/1000Mbps (Gigabit Ethernet)
Input DC 9-36V/15A
Output DC 56V/3A Max
Surge Protection ± 8KV (Differential), Class A
ESD Protection ± 8KV (Contact), ± 15KV (Air), Class A
Operating Temperature -20~+55℃
Operating Humidity 10% - 90% (Non-condensing)
Storage Temperature -40 to +70 °C
Power 150W Max
SKU SAT-SB-00510
Barcode # 9337692005473
Brand STARBEAM
