Securely monitor your surroundings with the TrackMix PoE P760 UHD 4K Dual-Lens PTZ Network Camera from Reolink. This weatherproof camera ensures wide coverage of your space or property thanks to PTZ functionality.

Dual-Lens UHD 4K Coverage with Flexible PTZ

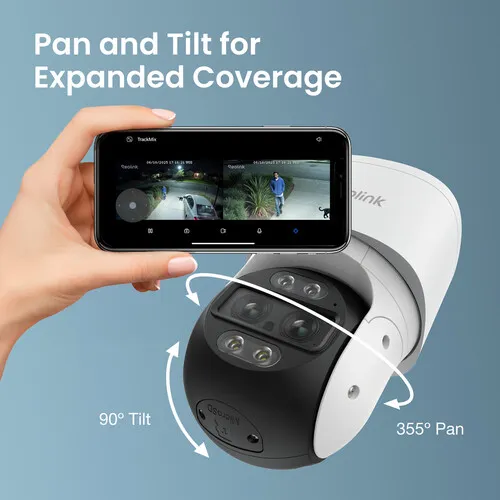

This dual-lens camera utilizes wide and telephoto lenses to capture UHD 4K resolution video at 25 fps. IR LEDs provide up to 100' of night vision, while spotlights provide illumination for recording full color video in low-light conditions. The wide 2.8mm fixed lens delivers a 96° horizontal angle of view, while the telephoto 8mm lens delivers a 38° horizontal angle of view. Additionally, PTZ functionality delivers a 355° panning range, a 0 to 90° tilt range, and 6x hybrid zoom.

The Reolink app for iOS and Android enable remote management. Compatibility with Amazon Alexa, Google Assistant, and Home Assistant offer seamless voice commands. The camera is housed in an weatherproof enclosure for safe outdoor use.

Two-Way Talk, Siren, Smart Alarms & Storage

Two-way audio with noise reduction and echo suppression is possible thanks to a built-in speaker and microphone.

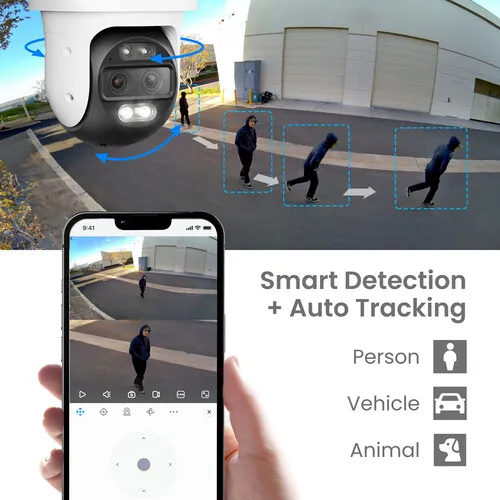

An integrated siren deters intruders and keeps unwanted guests at bay. Smart alarms include motion detection, person detection, and vehicle detection.

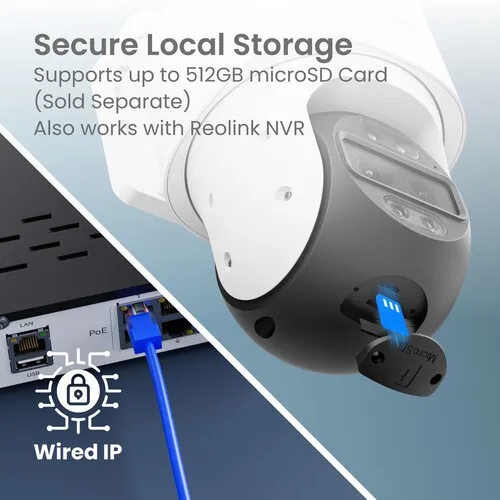

An onboard memory card slot supports microSD cards up to 512GB (available separately). Additionally, aReolink Home Hub and NVRs are options for saving recorded footage.

Additional Details

  • TrackMix enables panoramic and close-up views on one screen
  • Color night vision
  • 32 presets, auto-zoom tracking, digital tracking, and pan/tilt tracking
  • Integrated PoE technology simplifies connectivity by transferring data and power over one cable
  • Up to 20 users (1 admin and 19 users)
  • Data encryption

Key Specs

Image Sensor

1/3"-Type
1/2.8"-Type
Focal Length

2.8mm
8mm
Field of View

Horizontal: 96°
Vertical: 55°
Horizontal: 38°
Vertical: 21°
Horizontal: 104 to 38°
Vertical: 60 to 21°

Show More
Pan/Tilt

Pan: 355° at 2.5 to 90°/s
Tilt: 90° at 1.5 to 60°/s
Built-In Microphone

Yes
Power I/O

1x RJ45 (12VDC at 2 A)

Imaging

Number of Lenses

2
Image Sensor

1/3"-Type CMOS
1/2.8"-Type CMOS
Sensor Resolution

8 Megapixel
IR Cut Filter

Yes
Day/Night

Yes

Exposure Control

Minimum Illumination

0 Lux

Lens

Focal Length

2.8mm
8mm
Max Digital Zoom

6x
Field of View

Horizontal: 96°
Vertical: 55°
Horizontal: 38°
Vertical: 21°
Horizontal: 104 to 38°
Vertical: 60 to 21°
Maximum Aperture

f/1.6

Video

Supported Protocols

Video Streaming
DDNS/DHCP/DNS/FTP/HTTP/HTTPS/IPv4/v6/NTP/P2P/RTMP/RTSP/SMTP/SSL/TLS/TCP/UDP/UPnP
Max IP Streaming

H.264, H.265 via RJ45
3840 x 2160 up to 25 fps
Multi-View Streaming

Yes: 12 Streams

Control

Pan/Tilt

Pan: 355° at 2.5 to 90°/s
Tilt: 90° at 1.5 to 60°/s

Networking

Security

HTTPS

Interface

Media/Memory Card Slot

Single Slot: microSD (Unspecified Type) [512 GB Maximum]
Other I/O

1x RJ45
1- or 2-Way Audio

Two-Way
Built-In Microphone

Yes
Built-In Speaker

Yes

System Integration

Analytics

Motion Detection, People Detection, Vehicle Detection

Sensors & Alarms

Event Trigger

Yes
Event Action

Recording, Notification, Alarm
Alarm I/O

No

Power

PoE Support

Yes: PoE 802.3af
Power I/O

1x RJ45 (12VDC at 2 A)
Power Consumption

12 W

Environmental

Operating Conditions

14 to 131°F / -10 to 55°C at 10 to 90% Humidity
Environmental Resistance

Weather-Resistant (Unrated)

General

Certifications

CE, FCC, IC
Illumination

IR LEDs up to 100' / 30.5 m
OS Compatibility

Computer: macOS / Windows
Mobile: Android/iOS
Dimensions (W x H x D)

5.8 x 9 x 4.3" / 147 x 228 x 110 mm
Weight

3 lb / 1.21 kg (Body Only)

Packaging Info

Package Weight

3.69 lb
Box Dimensions (LxWxH)

9 x 9 x 6.4"
SKU PCTMXPT4K02
Barcode # 6978285032822
Brand Reolink
