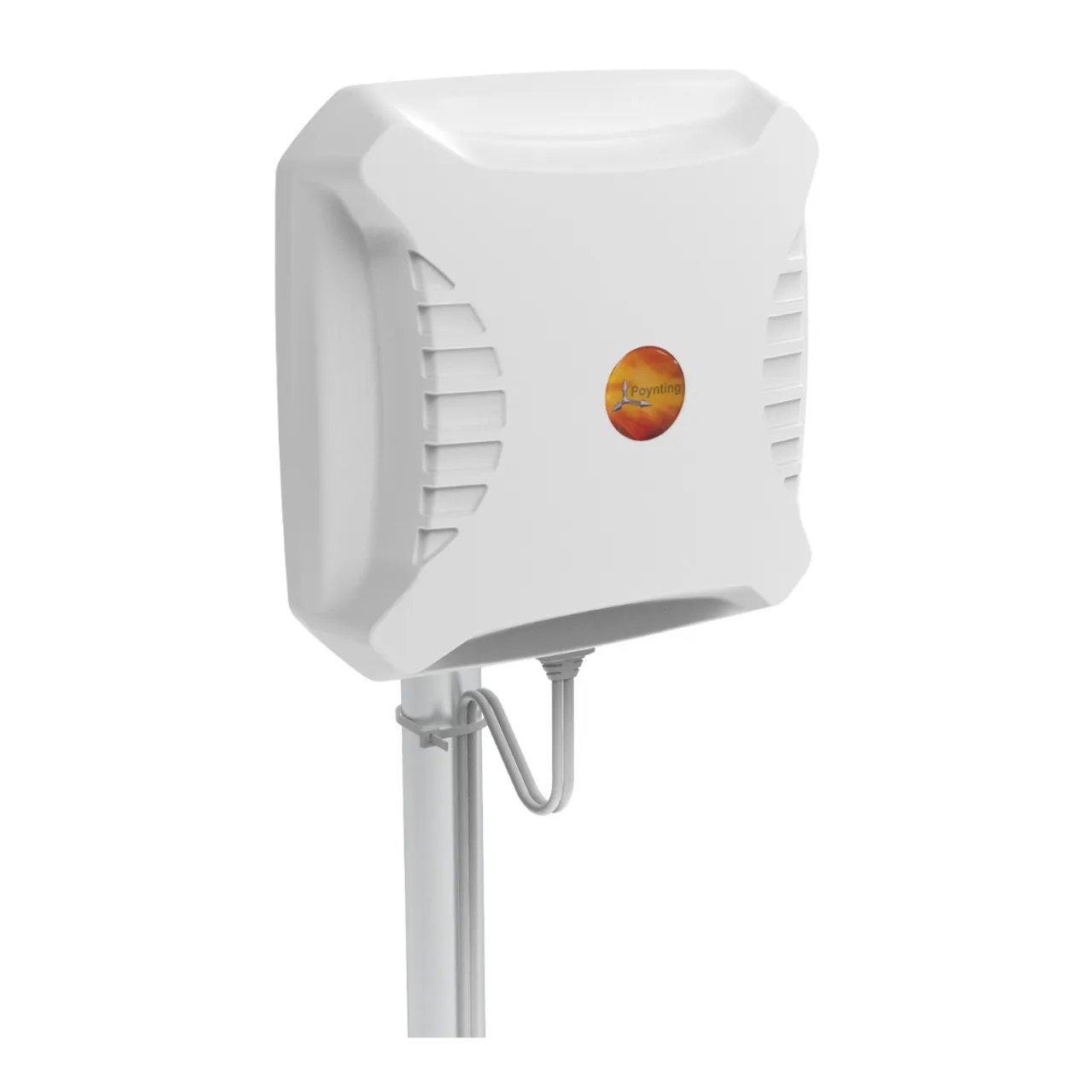

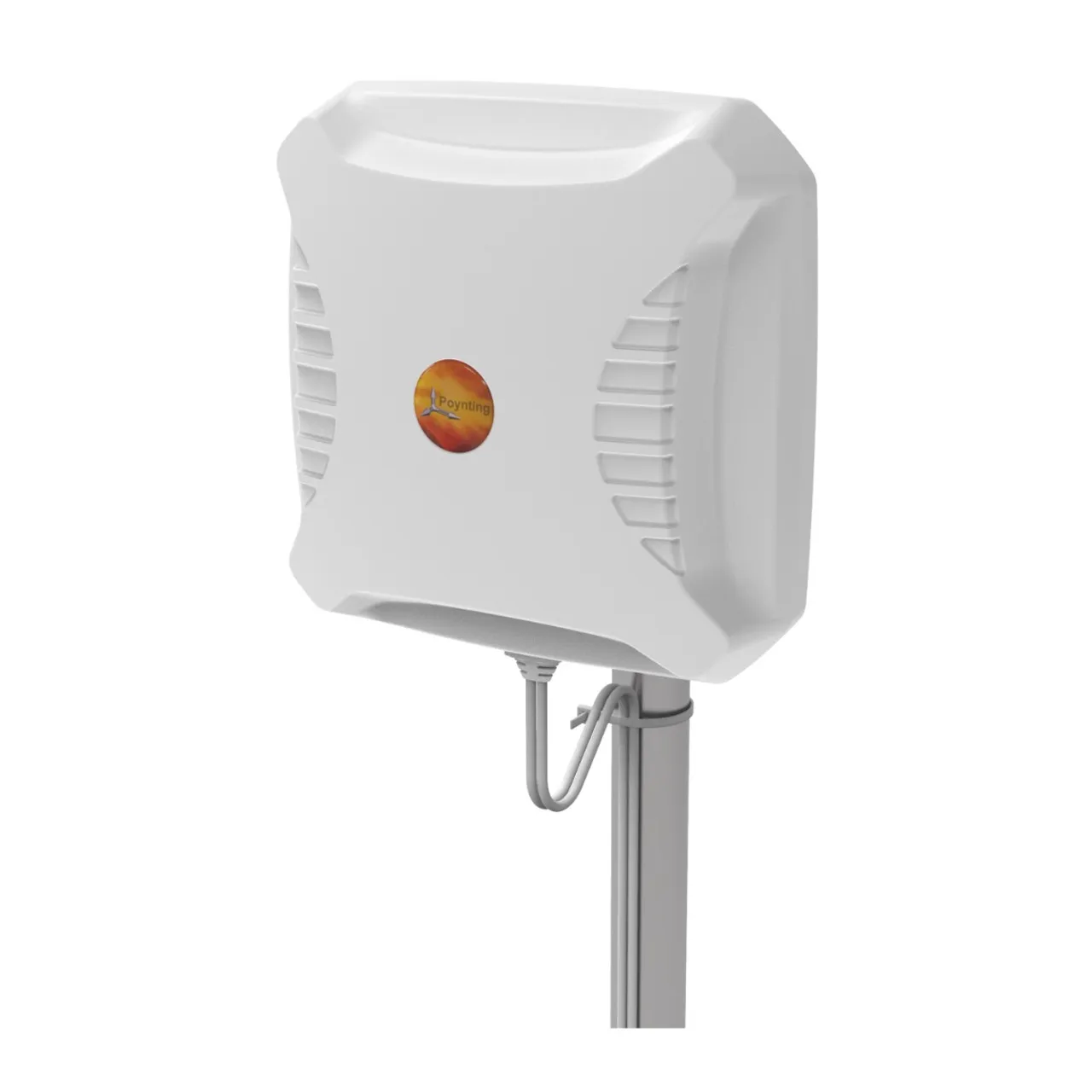

The Poynting XPOL-2-5G, Ultra-Wideband, 2x2 MIMO 4G-5G antenna supports an extensive frequency range from 617 to 4200 MHz. This wideband coverage ensures reliable performance across multiple generations of wireless technology, including 4G, 5G, and even legacy 2G/3G networks.

Key Features:

  • 617–960 MHz, 1710–2700 MHz, and 3400–4200 MHz Frequency Bands
  • ±45° Cross-Polarisation
  • 2x2 MIMO Technology
  • Advanced metamaterial technology
  • IP65 rated
  • UV stable ASA radome
  • Wall and pole mountable

High-Gain Performance

With a maximum gain of 11 dBi in the 3400 to 4200 MHz range, the XPOL-2-5G antenna delivers superior signal strength and clarity. This exceptional gain is complemented by improved performance in lower bands, offering up to 9 dBi gain at 617 to 960 MHz and 8.5 dBi at 1710 to 2700 MHz.

Cutting-Edge Technology

Featuring the latest in metamaterial technology, the XPOL-2-5G uses Artificial Magnetic Conductors (AMC) and a novel radiator design. These advancements result in higher bandwidth and better gain, making it an excellent choice for demanding applications.

Weatherproof Design

Engineered to withstand the elements, this antenna boasts an IP65 rating for weather and dust resistance. Its durable construction allows it to operate efficiently in temperatures ranging from -40 °C to +80 °C, making it suitable for both urban and rural environments.

Versatile Mounting Options

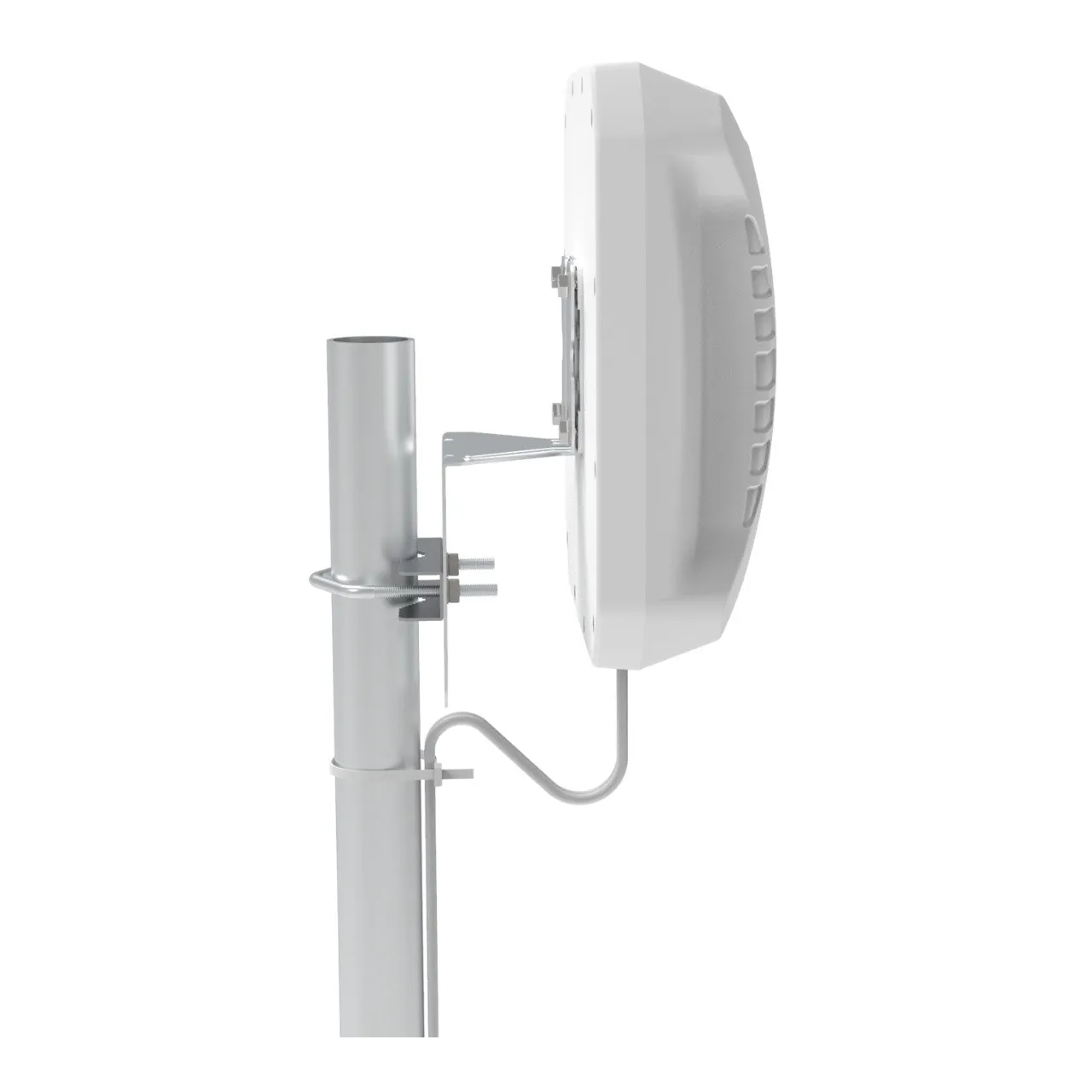

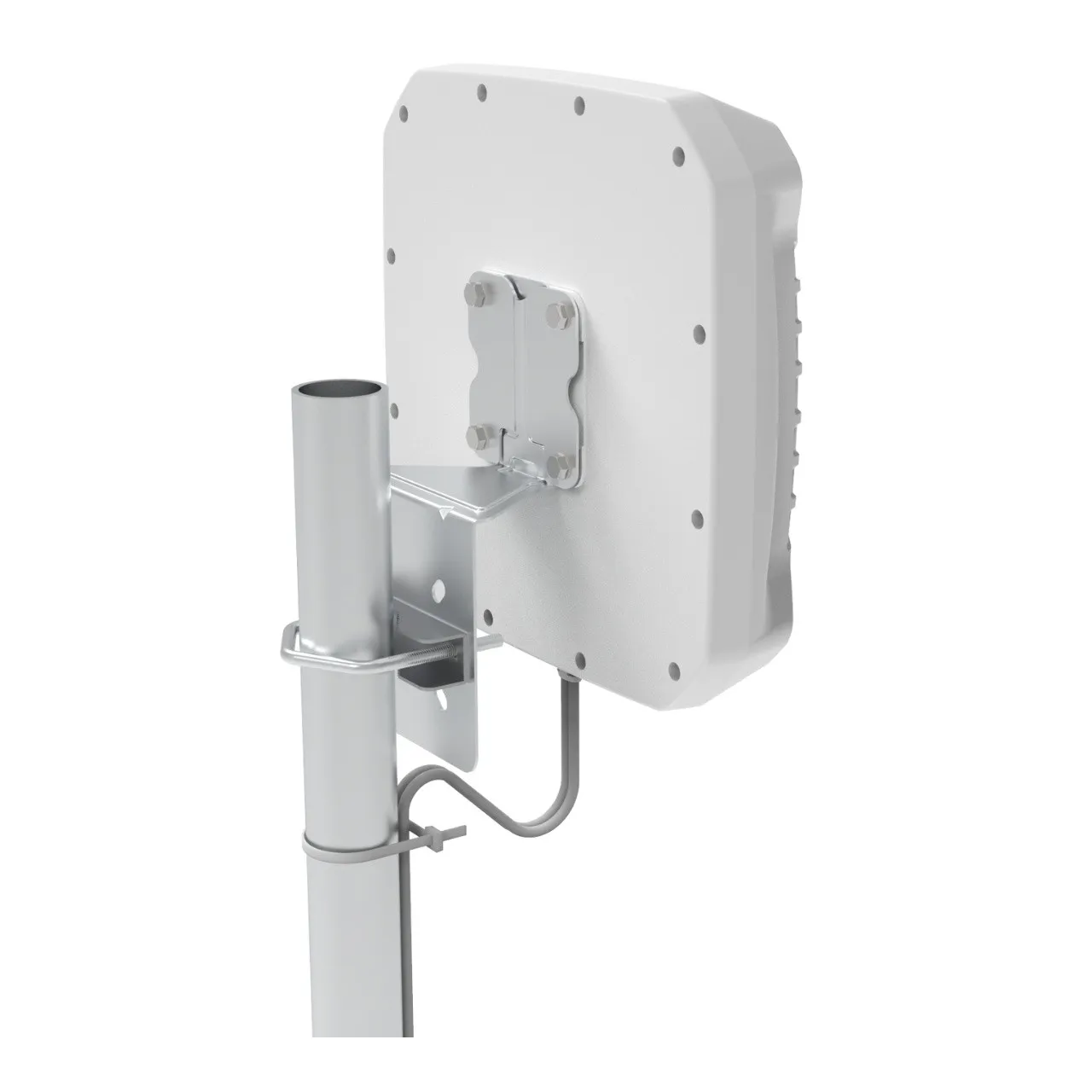

The XPOL-2-5G comes with a versatile mounting bracket, enabling wall or pole installation. Its lightweight and rugged design ensure stability and ease of installation, while the optional bracket provides additional support for high-wind areas.

Wide Range of Applications

Ideal for various scenarios, this antenna enhances connectivity in applications such as Fixed Wireless Access (FWA), LTE/5G deployments, agricultural data distribution, and industrial communication systems. Its high pattern consistency supports reliable carrier aggregation.

Regulatory Compliance

Meeting stringent standards, the XPOL-2-5G antenna is compliant with RoHS 2011/65/EU and ISO 9001:2015. It is designed to comply with CE regulations, ensuring it adheres to high safety and environmental standards.

Category Specification Details
Model Version A-XPOL-0002-V3-02 Ultra-Wideband
2×2 MIMO 4G-5G antenna
Frequency Bands Range 617 – 960 MHz
1710 – 2700 MHz
3400 – 4200 MHz
Gain 9 dBi @ 617 – 960 MHz
  8.5 dBi @ 1710 – 2700 MHz
  11 dBi @ 3400 – 4200 MHz
VSWR ≤1.5:1 Over 90% of the band
Feed Power Handling 10 W
Input Impedance 50 Ohm (nominal)
Polarisation ±45°
Coax Cable Loss Range 0.362 dB/m @ 900 MHz
0.514 dB/m @ 1800 MHz
0.533 dB/m @ 2400 MHz
0.603 dB/m @ 3000 MHz
Mounting Type Wall and Pole mount
Product Dimensions 265 mm x 265 mm x 90 mm
Product Weight 1.43 kg (with 5m coax cable)
Radome Material UV Stable ASA
Radome Colour Brilliant White Pantone P 179-1 C
Wind Survival ≤250 km/h For antenna
  ≤160 km/h For Z-Bracket
Temperature Range (Operating) -40 °C to +80 °C
Environmental Conditions Outdoor/Indoor
Water Ingress Protection IP65
Storage Temperature -40 °C to +80 °C
Operating Relative Humidity Up to 98%
Storage Humidity 5% to 95% — non-condensing
Enclosure Flammability Rating UL 94-HB
Impact Resistance IK 08
Regulatory Compliance RoHS 2011/65/EU Compliant ISO 9001:2015
Product Order Code A-XPOL-0002-V3-02
Coax Cable Length Total 10 m
SKU ANT-PY-00005
Brand Poynting
