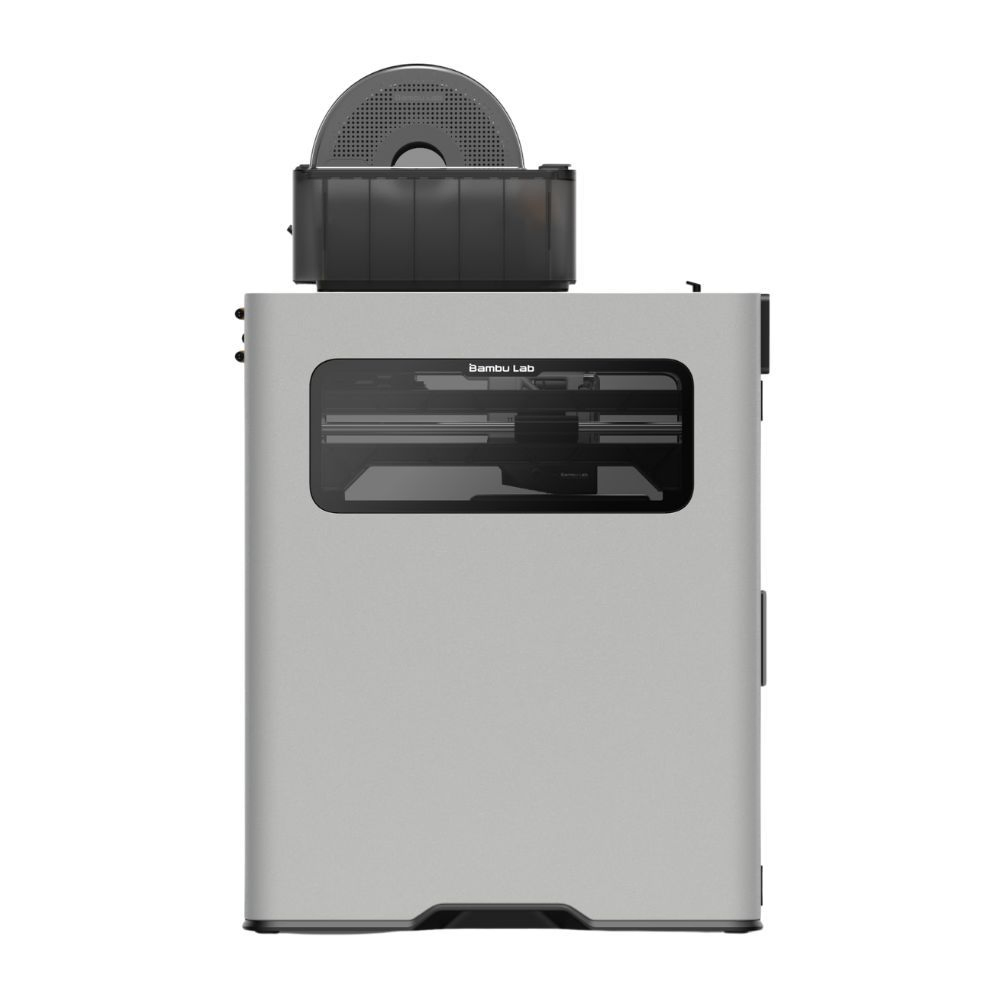

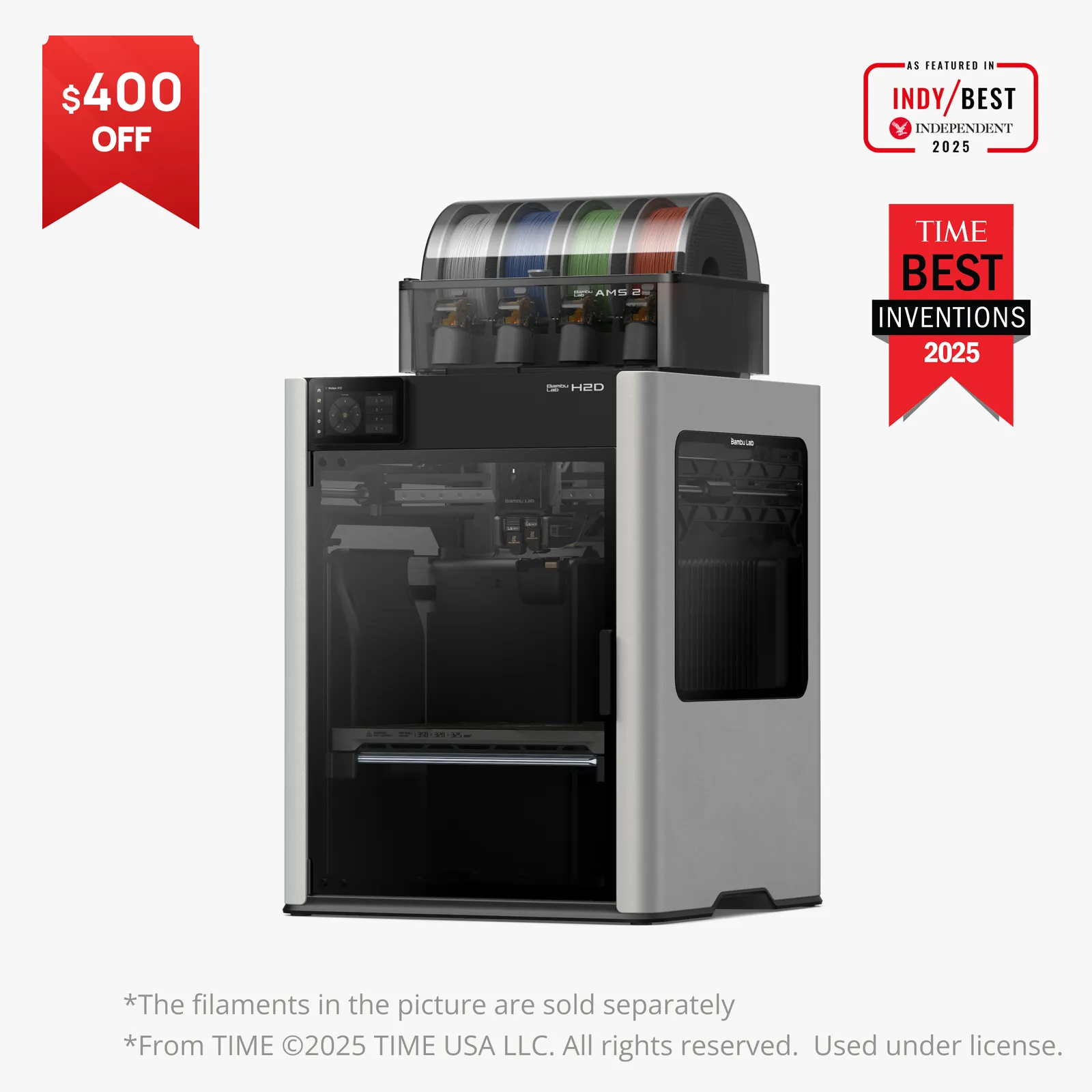

Bambu Lab H2D Combo 3D Printer (Enclosed) & AMS 2 Pro PF003-D+SA007-AU

Bambu Lab H2D 3D Printer (Includes AMS 2 Pro) PF003-D+SA007-AU

All-in-One Personal Manufacturing Hub

The Bambu Lab H2D is a next-generation manufacturing hub that combines 3D printing, laser engraving & cutting, and digital cutting/plotting in one versatile system. Built for precision, speed, and simplicity, it unlocks new creative possibilities for makers, educators, and professionals.

All-in-One Functionality
The H2D is more than a 3D printer. With integrated 10W/40W laser modules, digital cutting tools, and pen-drawing capability, it allows you to create across multiple mediums without switching between machines. Whether you’re prototyping, crafting, or teaching, this compact platform saves space while multiplying your creative options.

Revolutionary Accuracy
The H2D’s advanced motion system delivers up to 10x greater precision than conventional printers.
Vision Encoder (Optional) – Ensures ultra-fine 50µm motion accuracy across the entire workspace.
Auto Hole & Contour Compensation – Parts fit perfectly the first time, with no tedious adjustments.
Dual-Nozzle Offset <25µm – Automatic, contact-free calibration keeps prints accurate and consistent.

Specifications:

	Printing Technology	Fused Deposition Modeling
Body	*Build Volume (WDH)*	Single Nozzle Printing: 325320325mm³ Dual Nozzle Printing: 300320325mm³ Total Volume For Two Nozzles: 350320325mm³
	Chassis & Shell	Aluminium, Steel, Plastic and Glass
	Laser Safety Windows	Equipped on Laser Edition, normal H2D can upgrade through Laser Upgrade Kit
	Air Assist Pump	Equipped on Laser Edition, normal H2D can upgrade through Laser Upgrade Kit
Physical Dimensions	Physical Dimensions	*492514626 mm³ (Package size: 620620755mm³*
	Net Weight	31kg (Gross weight: H2D AMS Combo: 42.3kg)
Toolhead	Hotend	All Metal
	Extruder Gear	Hardened Steel
	Nozzle	Hardened Steel
	Max Nozzle Temperature	350°C
	Included Nozzle Diameter	0.4mm
	Supported Nozzle Diameter	0.2mm, 0.4mm, 0.6mm, 0.8mm
	Filament Diameter	1.75mm
	Extruder Motor	Bambu Lab High-precision Permanent Magnet Synchronus Motor

What's In The Box:
Bambu Lab H2D Textured PEI Build Plate Spool Holder Accessory Box AMS 2 Pro Safety Key
Connectivity & Software
Bambu Suite Software – Design, print, cut, and arrange projects with ease.
Cloud or Offline Control – Operate remotely or in full offline isolation.
Developer Mode – Supports MQTT integration for advanced users.

Key Features: Dual-nozzle Multi-material 3D Printing Optional 10W/40W Laser and Cutting Module 350*320*325 mm³ Print Volume 5μm Resolution Optical Motion Calibration Closed-loop Servo Extruder 350°C Nozzle & 65°C Active Chamber Heating Voltage Range: 200-240 V
Performance & Build
Large Build Volume – Up to 350 × 320 × 325 mm for oversized projects.
High-Temperature Capabilities – 350°C hotend and 65°C heated chamber for advanced filaments.
High-Flow Hotend (Optional) – Consistent high-speed printing at 600mm/s.
Hardened Steel Nozzle & Extruder – Ready for abrasive, fibre-reinforced materials.
Rigid Metal Frame – Full-metal construction ensures speed and accuracy.
Quick-Swap Nozzle – One-clip system for easy changes.

Safety Features
Engineered for worry-free operation: Laser safety doors with emergency stop sensors. Flame-retardant chamber with flame detection. Optional Auto Fire Extinguishing System with CO₂ module. Adaptive Airflow System – Controls fumes, dust, and chamber temperatures. Multi-sensor temperature monitoring for stable, safe operation.
AI-Powered Simplicity
Equipped with 4 cameras, 36 sensors, and intelligent algorithms, the H2D automates setup and monitoring.
BirdsEye Camera – Delivers 0.3mm top-view alignment accuracy for true WYSIWYG placement.
Print-Then-Cut – Print graphics and cut them with perfect alignment.
Auto Arrangement – Maximises material usage and minimises waste.
Pre-Flight Checklist – AI scans, calibrates, and verifies settings before each job.

Smart Filament Management
The second-generation AMS (Automatic Material System) takes filament handling to the next level: Integrated drying, feeding, and storage – Keeps materials in optimal condition. Auto-Rotate Drying & RFID Sync – Automatically adjusts settings for Bambu filaments. Faster filament feeding – Up to 60% faster with brushless servo motors. Tool-free access – Easily clear filament jams without disassembly.
Dual-Nozzle Printing Flexibility
Switch between materials and colours effortlessly:
Multi-material printing – Combine rigid, flexible, and exotic filaments in one project.
Dedicated support materials – Print complex geometries with easy-to-remove supports.
Efficient multi-colour printing – No downtime, less waste, smoother results.
Full-auto nozzle calibration – No tools or manual adjustments required.

Laser Cutting & Engraving
The H2D brings powerful, professional-grade laser capabilities to your desktop. 10W Laser – Cuts up to 5mm plywood. 40W Laser – Cuts up to 15mm plywood. Air Assist System – Improves cut quality with high-speed air cooling. 3D Mesh Scanning – Engrave precisely on curved or uneven surfaces. Rotary Attachment (Optional) – Expand engraving to cylinders, spheres, and rings. Laser Safety Windows & Purifier – Built-in protection and optional air filtration for safe operation.
